Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition09 · Drive shafts
09 · Transmission

47M0055

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › 47M0055
Drive shafts47M0055 · page 1 of 8

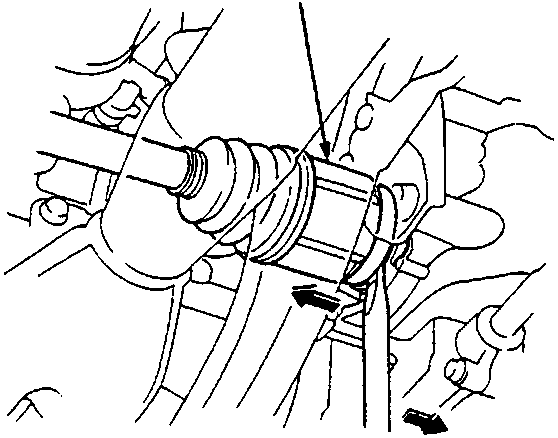

Diagram showing the inboard joint of a driveshaft connected to the differential case, labeled A.

47M0055

A Inboard Joint

  1. Pull the inboard joint and remove the driveshaft from the differential case as an assembly.

CAUTION:

  • Do not pull on the driveshaft as the inboard joint may come apart.
  • Use care when prying out the assembly and pull it straight to avoid damaging the differential oil seal.

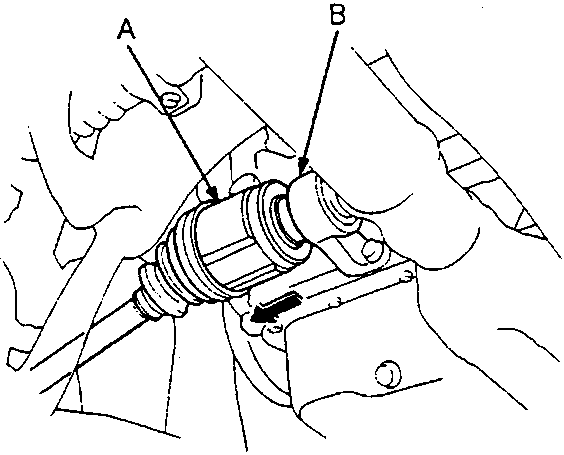

Diagram showing the left driveshaft being removed from the bearing support, with labels A for Inboard Joint and B for Bearing Support.

47M0056

A Inboard Joint
B Bearing Support

With Intermediate Shaft:

Remove the left driveshaft from the bearing support by tapping the inboard joint of the driveshaft with a plastic hammer.

CAUTION:

  • Do not pull on the driveshaft as the inboard joint may come apart.
  • Use care when prying out the assembly and pull it straight to avoid damaging the intermediate shaft outer seal.
