600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Drive shafts47M0055 · page 4 of 8

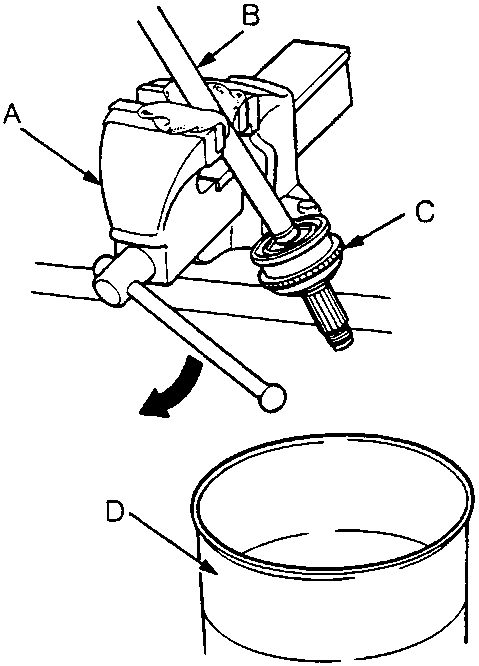

Diagram showing a driveshaft clamped in a vice with labels A (Vice), B (Driveshaft), C (Outboard Joint), and D (Rubbish Bin) positioned underneath.

A Vice

B Driveshaft

C Outboard Joint

D Rubbish Bin

  1. Carefully clamp the driveshaft in a vice with the outboard joint facing down. Clamp the driveshaft tight enough to prevent it from moving but not so tight as to damage or distort it.
  2. Position a rubbish bin underneath the driveshaft to catch the outboard joint.

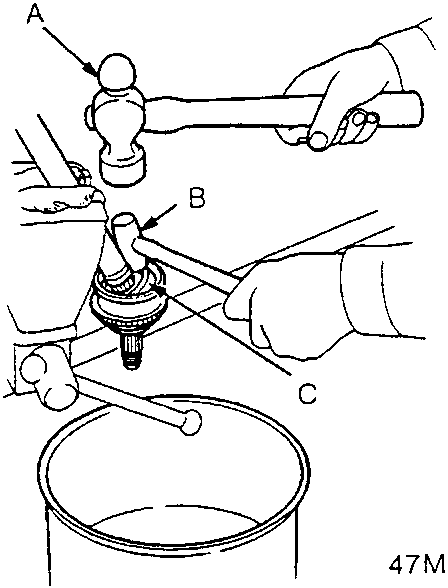

Diagram showing a steel ball peen hammer striking a brass mallet which is placed on the outboard joint inner race, with a rubbish bin below.

A Steel Ball Peen Hammer

B Brass Mallet

C Outboard Joint Inner Race

  1. Place the head of a brass mallet on the outboard joint inner race. Using a large steel ball peen hammer, strike the head of the brass mallet sharply two or three times.

Note: If the outboard boot disturbs you, cut off the outboard boot.
