Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition09 · Drive shafts
09 · Transmission

Intermediate Shaft Removal (page 2 of 5)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Drive shaftsIntermediate Shaft Removal · page 2 of 5
  1. Press the intermediate shaft out to the shaft bearing using the special tools and a press.

Note: Position the special tools so they do not damage the metal ring on the shaft.

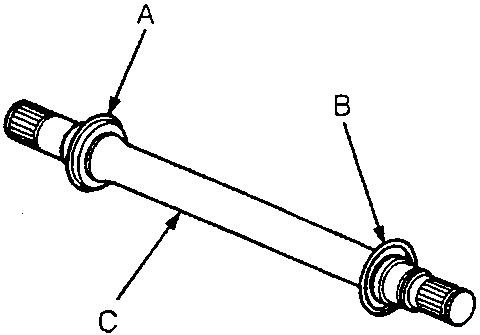

Diagram of intermediate shaft assembly showing labels A, B, and C
  1. Intermediate Shaft Ring
  2. Bearing Support Ring
  3. Intermediate shaft
  4. Check the intermediate shaft for damage.
  5. Check the intermediate shaft ring for damage or distortion.
  6. Check the bearing support ring for damage or distortion.

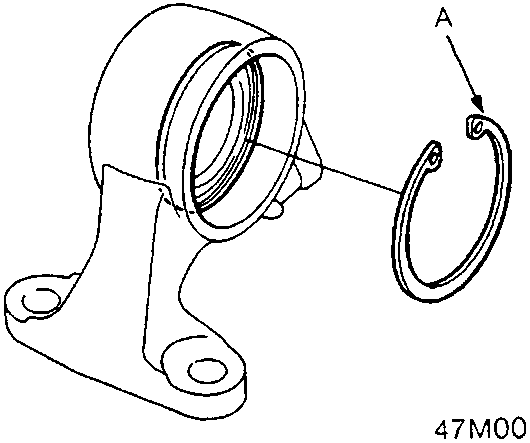

Diagram of bearing support with internal circlip removed, labeled A
  1. Internal Circlip
  2. Remove the internal circlip.

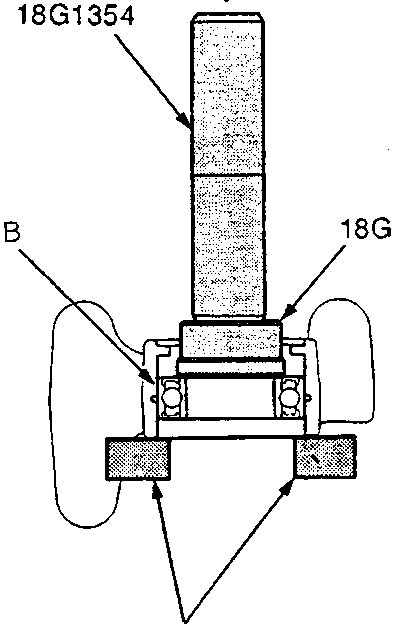

Diagram showing press tool (A) pressing intermediate shaft bearing (B) out of support using tools 18G1354, 18G1533, and 18G1679
  1. Press
  2. Intermediate Shaft Bearing
  3. Press the intermediate shaft bearing out of the bearing support using the special tools and a press. Discard the bearing.

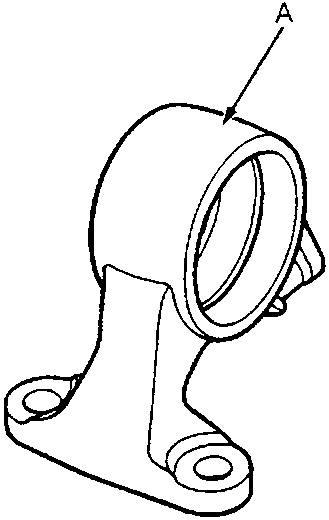

Diagram of bearing support labeled A
  1. Bearing Support
  2. Check the bearing support for damage.
