Intermediate Shaft Removal (page 5 of 5)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Drive shaftsIntermediate Shaft Removal · page 5 of 5

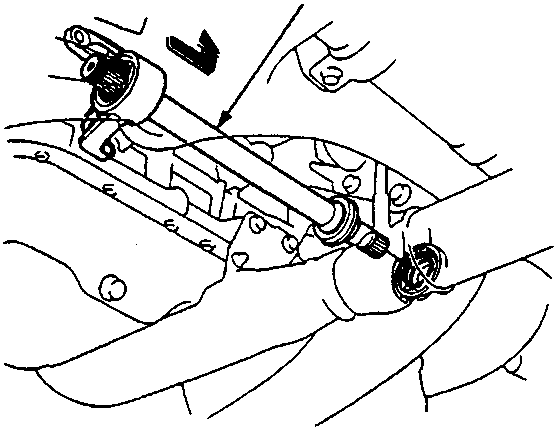

Diagram showing the installation of the intermediate shaft into the differential assembly.
47M0100
  1. A Intermediate Shaft
  2. Insert the intermediate shaft assembly into the differential.

CAUTION: Hold the intermediate shaft horizontal, to prevent damage to the differential oil seal.

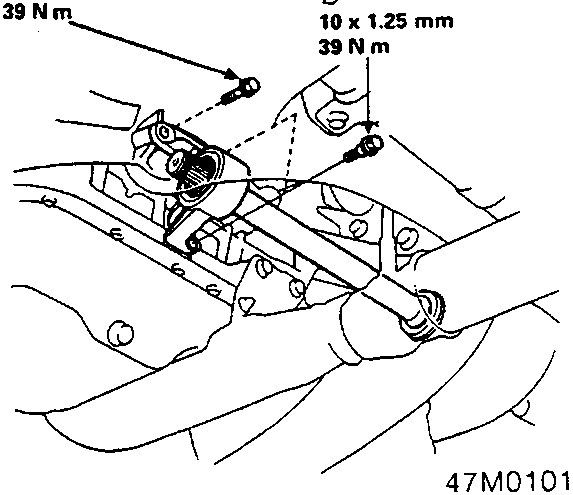

Diagram showing the flange bolt and dowel bolts being installed on the intermediate shaft with torque specifications.
47M0101
  1. A Flange Bolt
    B Dowel Bolts
  2. Install the flange bolt and dowel bolts, then tighten them.
