Heating and ventilationFault finding

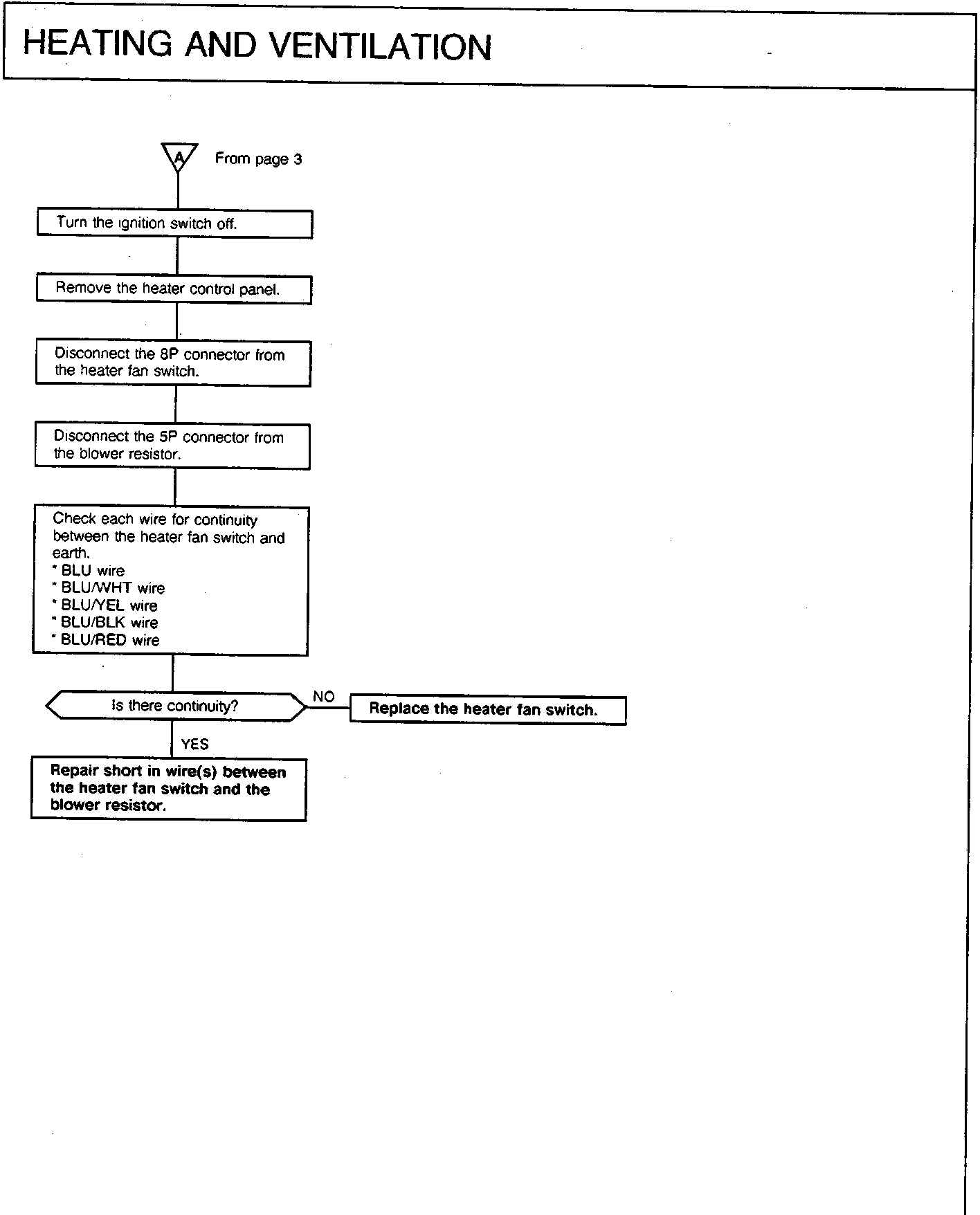

Turn the ignition switch off.
Remove the heater control panel.
Disconnect the 8P connector from the heater fan switch.
Disconnect the 5P connector from the blower resistor.
Check each wire for continuity between the heater fan switch and earth.
* BLU wire
* BLU/WHT wire
* BLU/YEL wire
* BLU/BLK wire
* BLU/RED wire
Is there continuity?
NO — Replace the heater fan switch.
YES — Repair short in wire(s) between the heater fan switch and the blower resistor.
