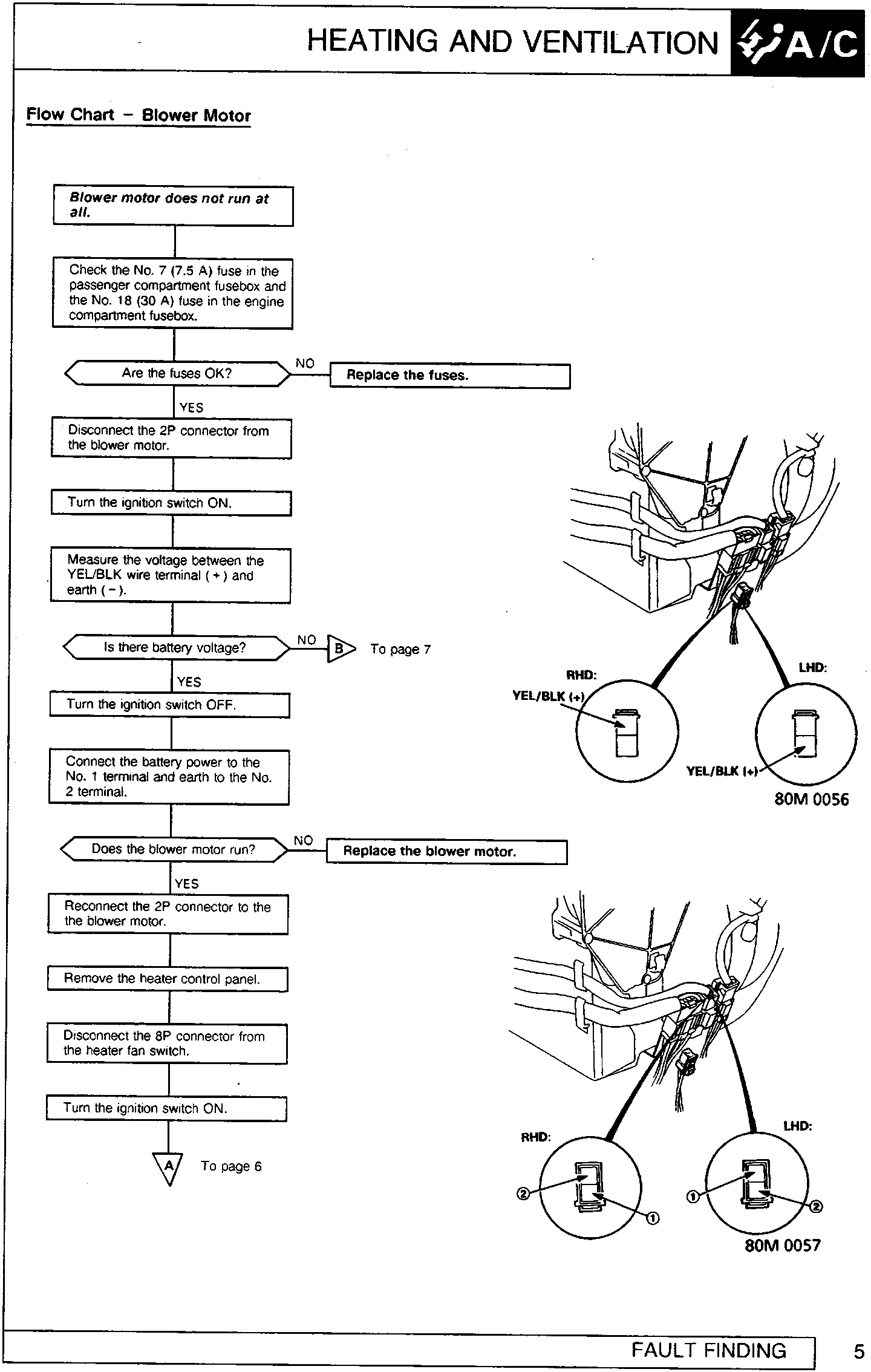

Flow Chart – Blower Motor

Flow Chart – Blower Motor

Blower motor does not run at all.

Check the No. 7 (7.5 A) fuse in the passenger compartment fusebox and the No. 18 (30 A) fuse in the engine compartment fusebox.

Are the fuses OK?

• NO: Replace the fuses.
• YES: Disconnect the 2P connector from the blower motor.

Turn the ignition switch ON.

Measure the voltage between the YEL/BLK wire terminal (+) and earth (-).

Is there battery voltage?

• NO: [B] To page 7
• YES: Turn the ignition switch OFF.

Connect the battery power to the No. 1 terminal and earth to the No. 2 terminal.

Does the blower motor run?

• NO: Replace the blower motor.
• YES: Reconnect the 2P connector to the the blower motor.

Remove the heater control panel.

Disconnect the 8P connector from the heater fan switch.

Turn the ignition switch ON.

[A] To page 6
