Heating and ventilationFlow Chart – Blower Motor · page 5 of 5

From page 8

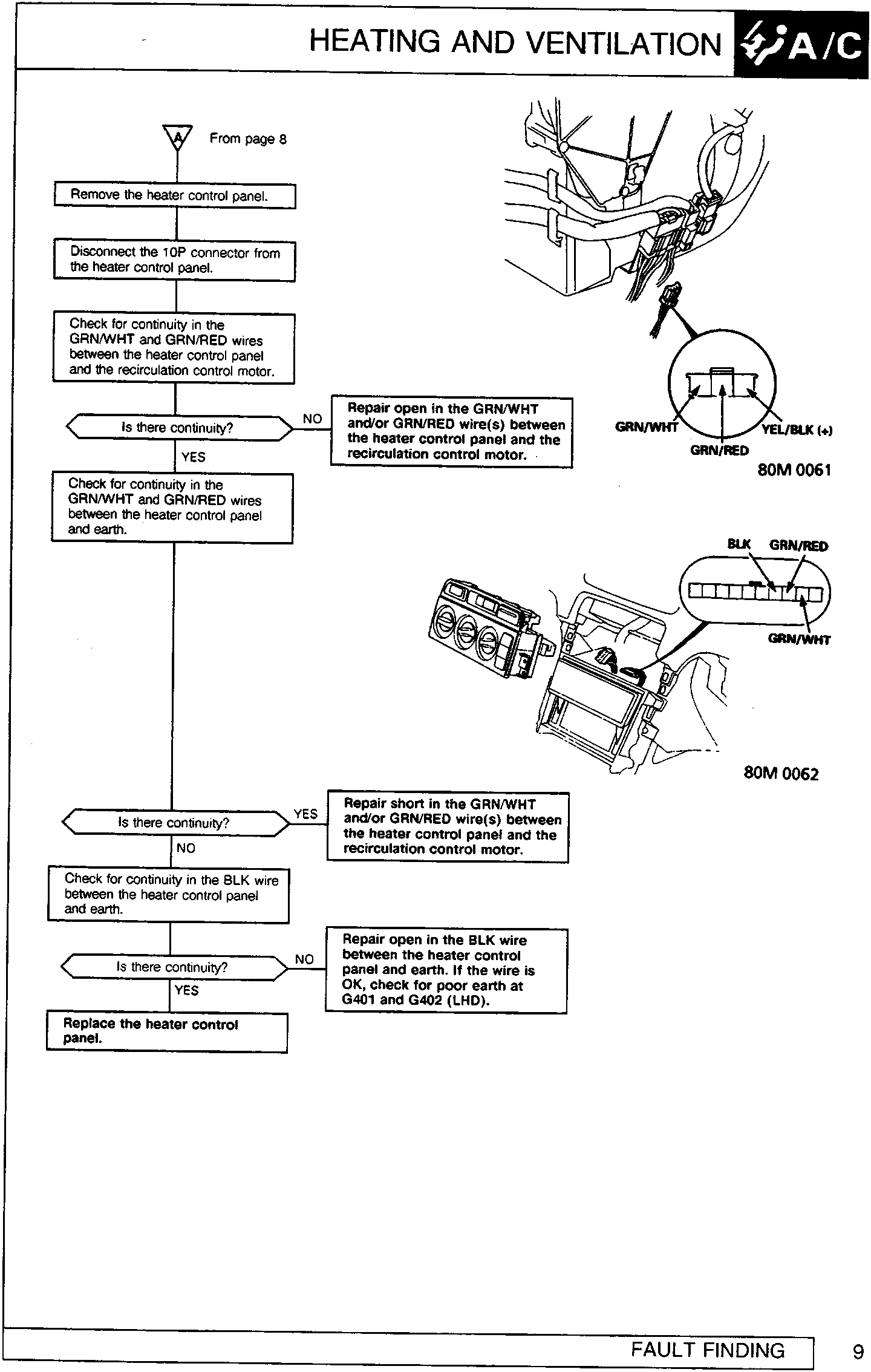

Diagram showing the heater control panel wiring connector and a close-up of the terminal layout with wire labels GRN/WHT, YEL/BLK (+), and GRN/RED.

Remove the heater control panel.

Disconnect the 10P connector from the heater control panel.

Check for continuity in the GRN/WHT and GRN/RED wires between the heater control panel and the recirculation control motor.

Is there continuity?

  • NO: Repair open in the GRN/WHT and/or GRN/RED wire(s) between the heater control panel and the recirculation control motor.
  • YES: Check for continuity in the GRN/WHT and GRN/RED wires between the heater control panel and earth.
Diagram showing the heater control panel removed from the dashboard and a close-up of the connector terminals labeled BLK, GRN/RED, and GRN/WHT.

Is there continuity?

  • YES: Repair short in the GRN/WHT and/or GRN/RED wire(s) between the heater control panel and the recirculation control motor.
  • NO: Check for continuity in the BLK wire between the heater control panel and earth.

Is there continuity?

  • NO: Repair open in the BLK wire between the heater control panel and earth. If the wire is OK, check for poor earth at G401 and G402 (LHD).
  • YES: Replace the heater control panel.
