600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Information
SteeringFlow Control Valve Open · page 3 of 4

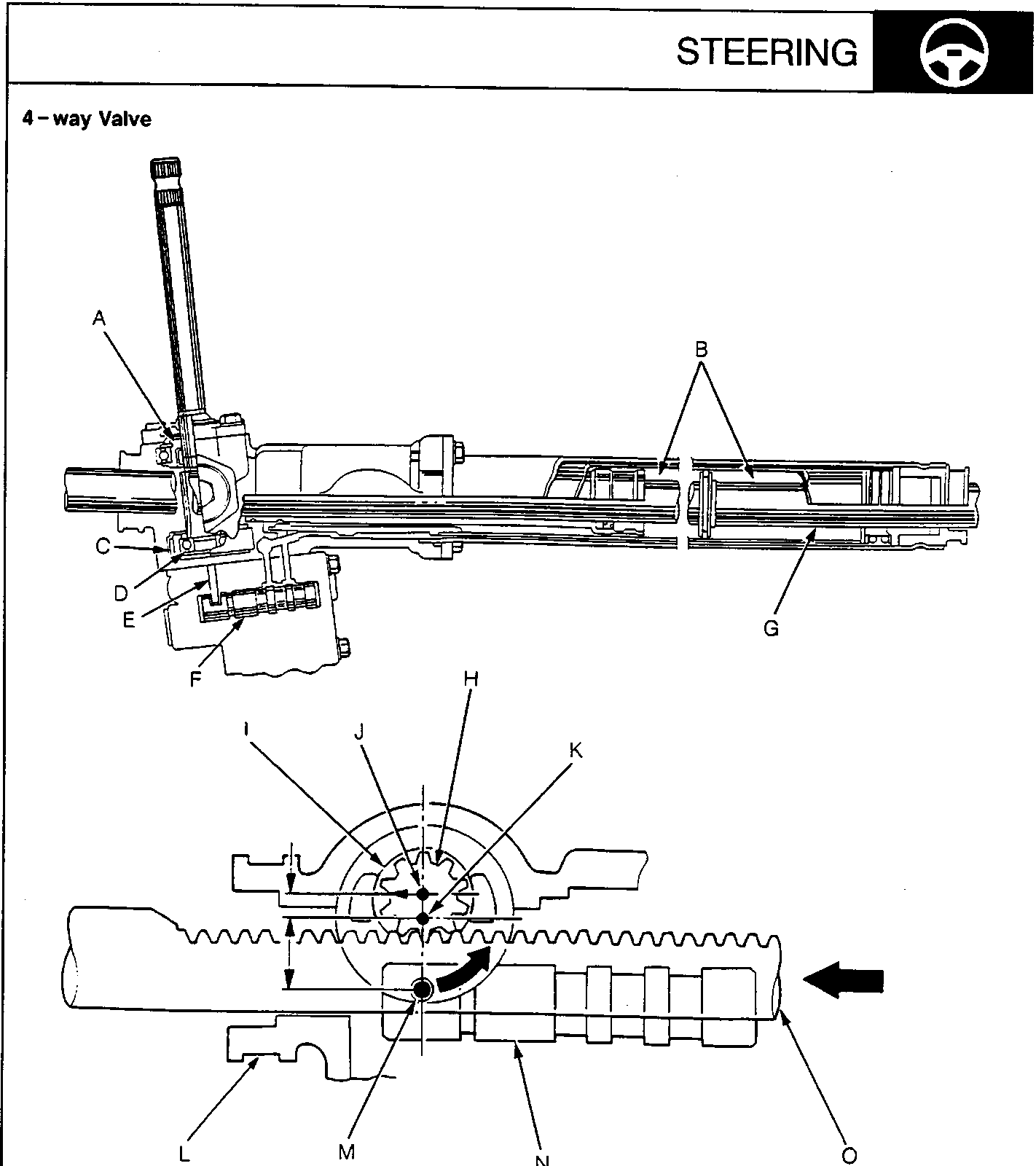

Diagram of a 4-way valve steering system showing components labeled A through O, including pinion holder, power cylinders, needle roller bearing, ball bearing, pin, 4-way valve, steering rack, pinion gear, and gear housing.
57M0054
A Pinion Holder B Power Cylinders C Needle Roller Bearing D Ball Bearing E Pin F 4-way Valve G Steering Rack H Pinion Gear I Pinion Holder J Pinion Centre K Pinion Holder Centre L Gear Housing M Pin N 4-way Valve O Steering Rack
