SteeringSpecial tools · page 1 of 2
SPECIAL TOOLS
| No. | Honda Number | Rover Number | Description |
|---|---|---|---|
| 1 | 07GAG-SD40300 | 18G 1683/1 | Cylinder End Seal Slider |
| 2 | 07GAG-40400 | 18G 1531/2 | Cylinder End Seal Guide |
| 3 | 07HAG-SF10100 | 18G 1531/3 | Piston Seal Ring Guide |
| 4 | 07HAG-SF10200 | 18G 1531/4 | Piston Seal Ring Sizing Tool |
| 5 | 07974-SA50600 | 18G 1683/2 | Pinion Seal Guide |
| 6 | 07LAK-SM40110 | 18G 1496-12/1 | P/S Joint Adapter (Pump) |
| 7 | 07LAK-40120 | 18G 1496-12/2 | P/S Joint Adapter (Hose) |
| 8 | 07MAA-SL00100 | 18G 1682 | Locknut Spanner, 40 mm |
| 9 | 07MAC-SL00200 | 18G 1584 | Ball Joint Remover, 28 mm |
| 10 | 07406-0010001 | 18G 1496 | P/S Pressure Gauge Set |
| 10-1 | 07406-0010300 | 18G 1496-1 | Pressure Control Valve |
| 10-2 | 07406-0010400 | Part of 18G 1496 | Pressure Gauge |
| 10-3 | 07406-0010101 | 18G 1496-13 | Bypass Tube Joint |
| 11 | 07406-0010300 | 18G 1354-4 | Attachment, 42 x 47 mm |
| 12 | 07749-0010000 | 18G 1354 | Driver |
| 13 | 07947-6340300 | 18G 1697 | Driver Attachment |
The tools illustrated in this section are Honda tools, and Rover do not always have an equivalent. Where an equivalent Rover tool is available, it may not be visually identical to the Honda tool.
- Cylinder End Seal Slider
- Cylinder End Seal Guide
- Piston Seal Ring Guide
- Piston Seal Ring Sizing Tool
- Pinion Seal Guide
- P/S Joint Adapter (Pump)
- P/S Joint Adapter (Hose)
- Locknut Spanner, 40 mm
- Ball Joint Remover, 28 mm
- P/S Pressure Gauge Set
- Pressure Control Valve
- Pressure Gauge
- Bypass Tube Joint
- Attachment, 42 x 47 mm
- Driver
- Driver Attachment

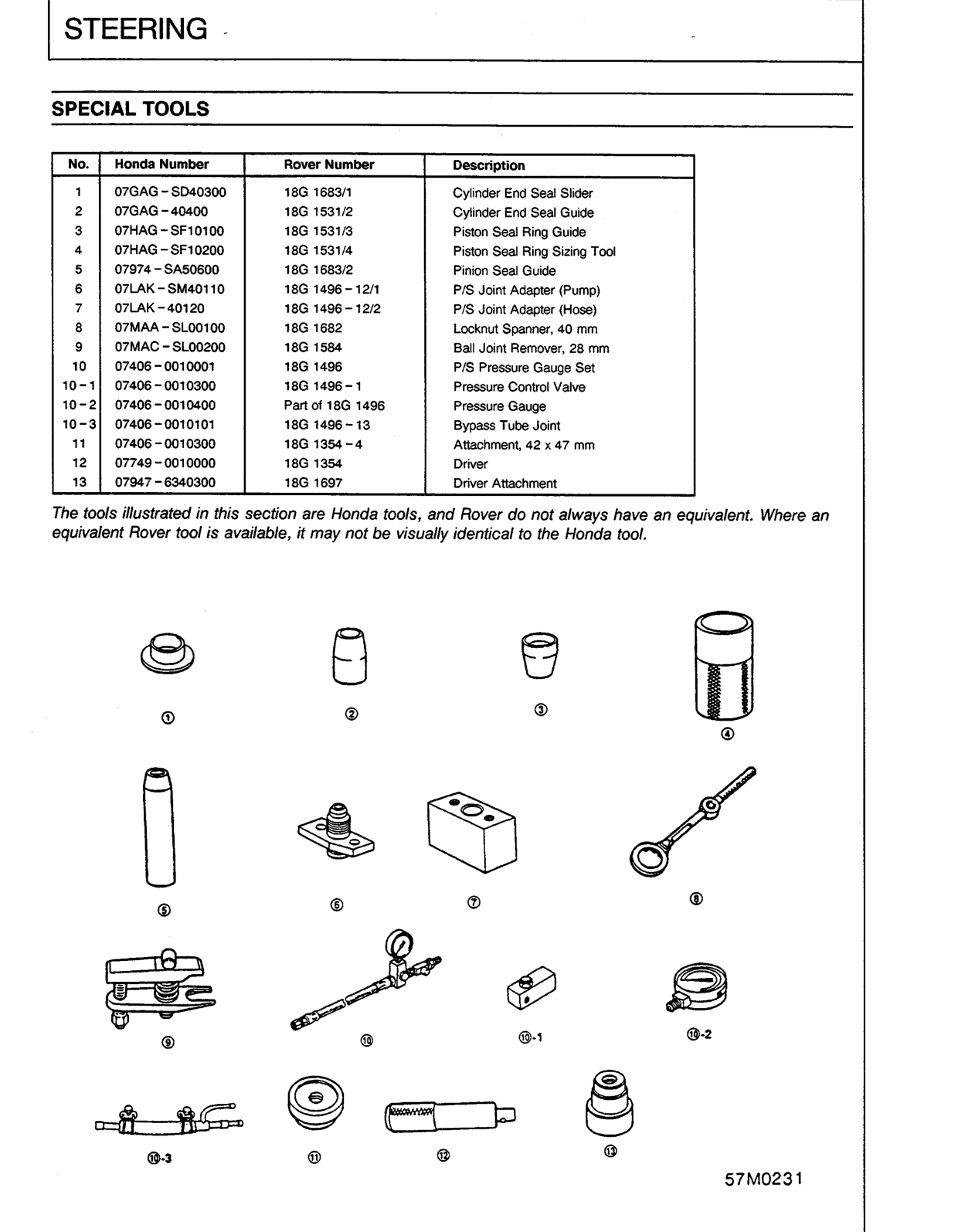

Original page
