SteeringFluid Flow Diagram · page 1 of 2

Fluid Flow Diagram

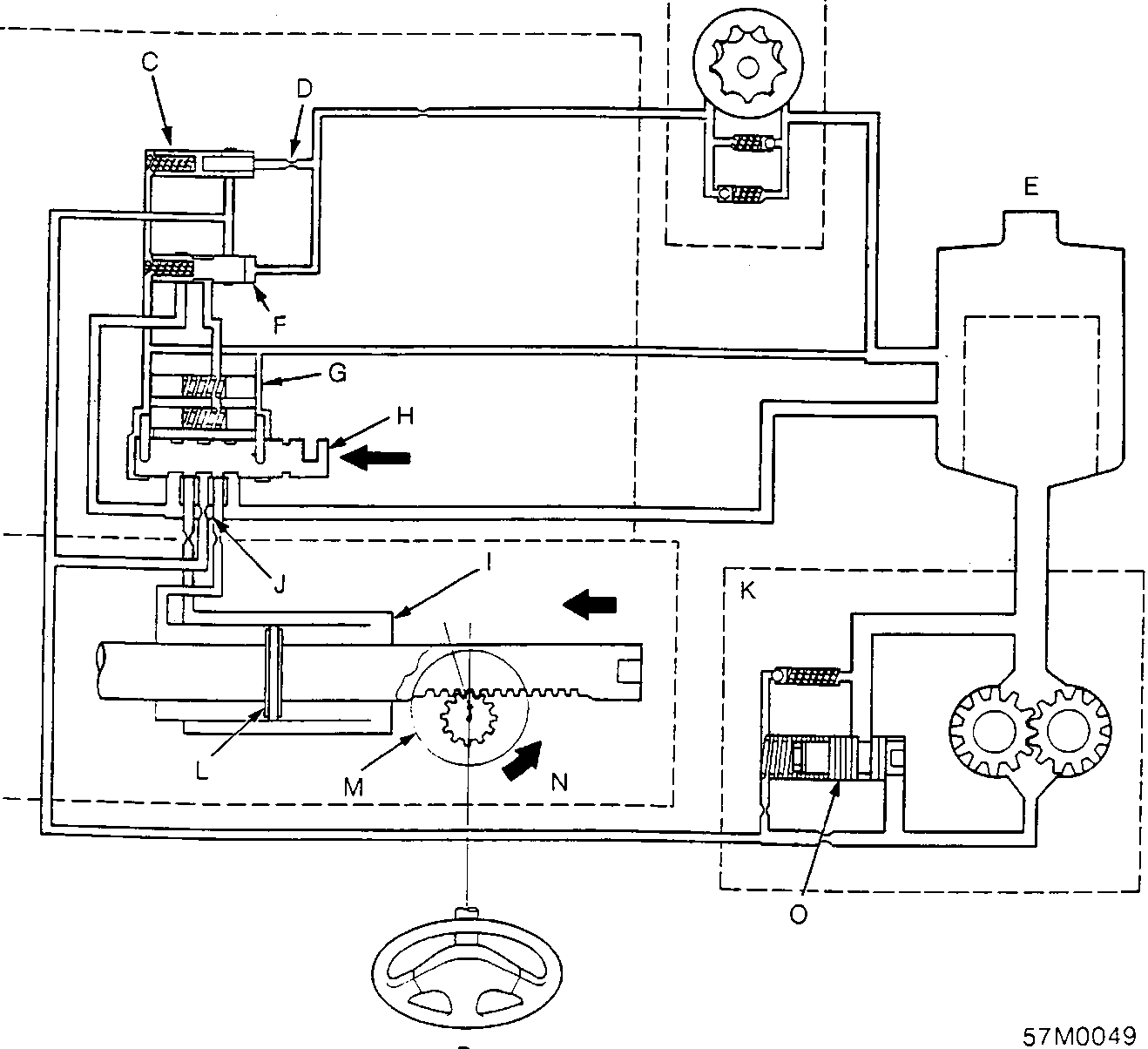

Schematic diagram of the power steering system showing internal components including sensors, valves, pump, cylinder, and gearbox, with callout letters A through P.
  • A Power Steering Speed Sensor
  • B Valve Body Unit
  • C Pressure Control Valve
  • D Sensor Orifice
  • E Reservoir
  • F Gain Control Valve
  • G Reaction Plunger
  • H 4-way Valve
  • I Power Cylinder
  • J Main Orifice
  • K Pump
  • L Piston
  • M Pinion Holder
  • N Gearbox
  • O Flow Control Valve (Relief Valve)
  • P Steering Wheel
