Repairs › Caution:
Supplementary restraint system (SRS)Caution: · page 1 of 2

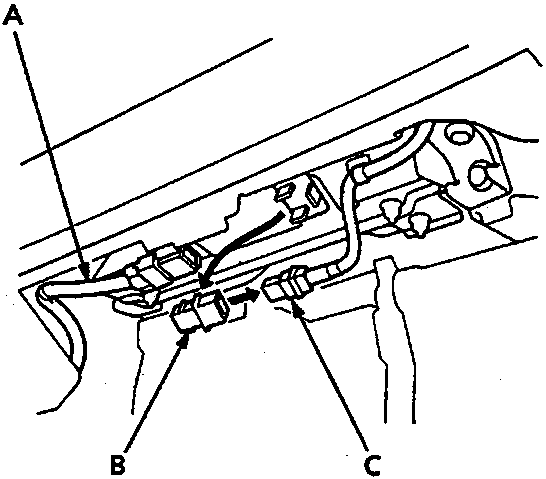

Diagram showing SRS main harness, short connector and front passenger's airbag 3-P connector under dashboard

A SRS main harness
B Short connector – RED
C Front passenger’s airbag 3 – P connector

  1. Connect the short connectors to the airbags.

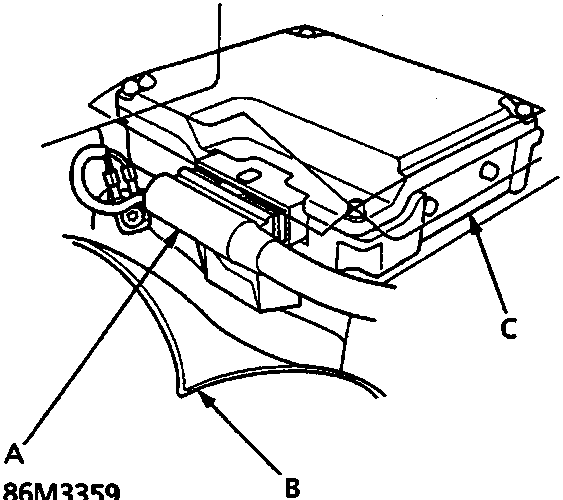

Diagram showing SRS unit, carpet and SRS main harness 18-P connector location

A SRS main harness 18 – P connector
B Carpet
C SRS unit

  1. RH steering: Remove 2 nuts and release footrest from carpet.
  2. Pull down carpeting from both sides of the heater unit and front console.

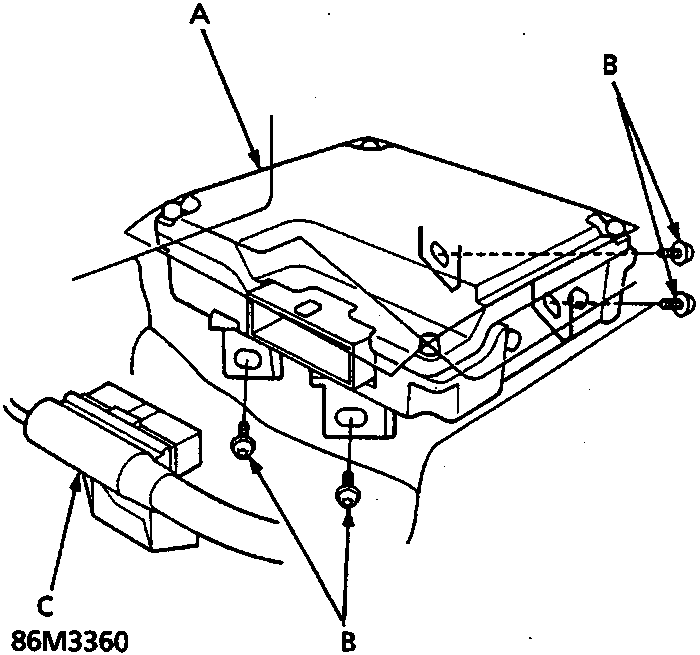

Diagram showing SRS unit, Torx bolts and SRS main harness 18-P connector

A SRS unit
B Torx bolts – 6mm
C SRS main harness 18 – P connector

  1. Disconnect the SRS main harness 18 – P connector from the SRS unit.
  2. Remove 4 Torx bolts securing the SRS unit and extract the SRS unit.

CAUTION:

  • Be sure to install the SRS wiring so that it is not pinched or interfering with other components.
  • When torque tightening the Torx bolts, be careful to ensure that there heads rest squarely on the brackets.

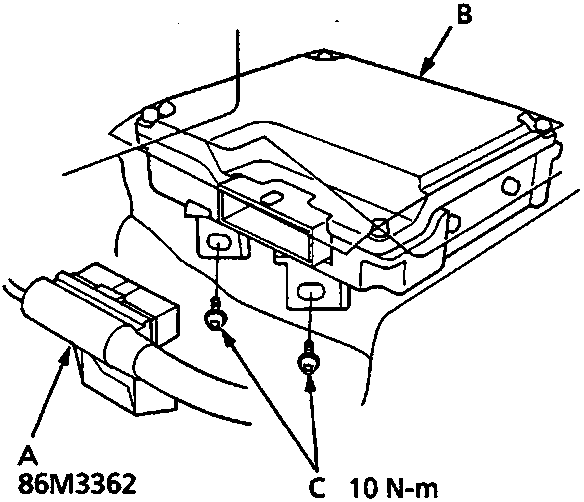

Diagram showing SRS unit cover, SRS main harness 18-P connector and Torx bolts with 10 N-m torque specification

A SRS main harness 18 – P connector
B SRS unit/SRS unit cover
C Torx bolts – 6mm
