Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition19 · Supplementary restraint system (SRS)
19 · Body & interior

Driver’s Airbag

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Driver’s Airbag
Supplementary restraint system (SRS)Driver’s Airbag · page 1 of 2

CAUTION: Ensure the SRS wiring is installed so that it is not pinched or can interfere with other components.

Driver’s Airbag

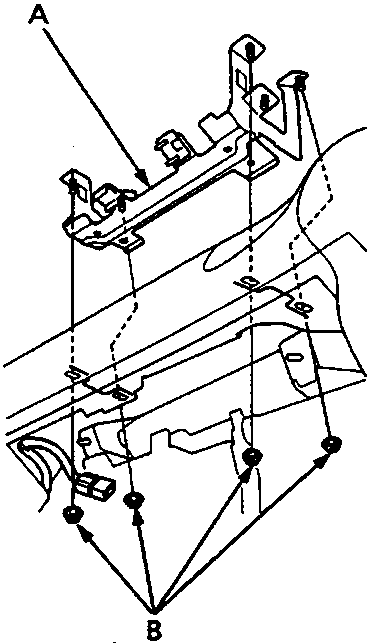

Diagram showing module bracket and mounting nuts on dashboard assembly, reference 86M3338
  • A Module bracket
  • B Mounting nuts
  1. Remove 4 nuts and the module bracket from the dashboard.

CAUTION: Under no circumstance leave the module bracket in place when replacing the passenger's airbag. The bracket carries the serial number and therefore must be replaced.

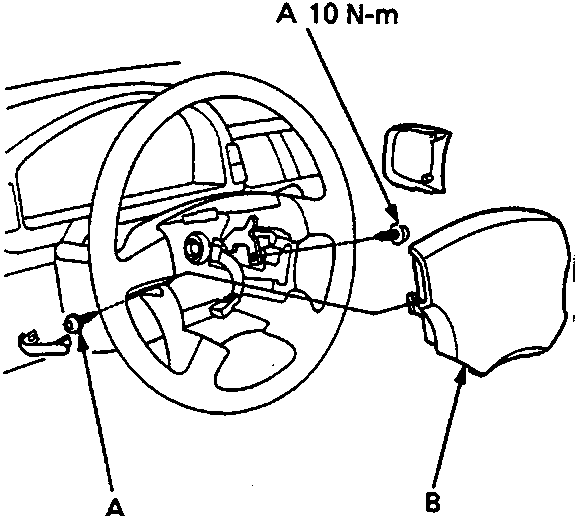

Diagram of driver's airbag assembly on steering wheel showing TORX bolts and torque values, reference 86M3339
  • A TORX bolt
  • B Driver's airbag
  1. Place the driver's airbag assembly in the steering wheel, secure with new TORX bolts.

Passenger's Airbag

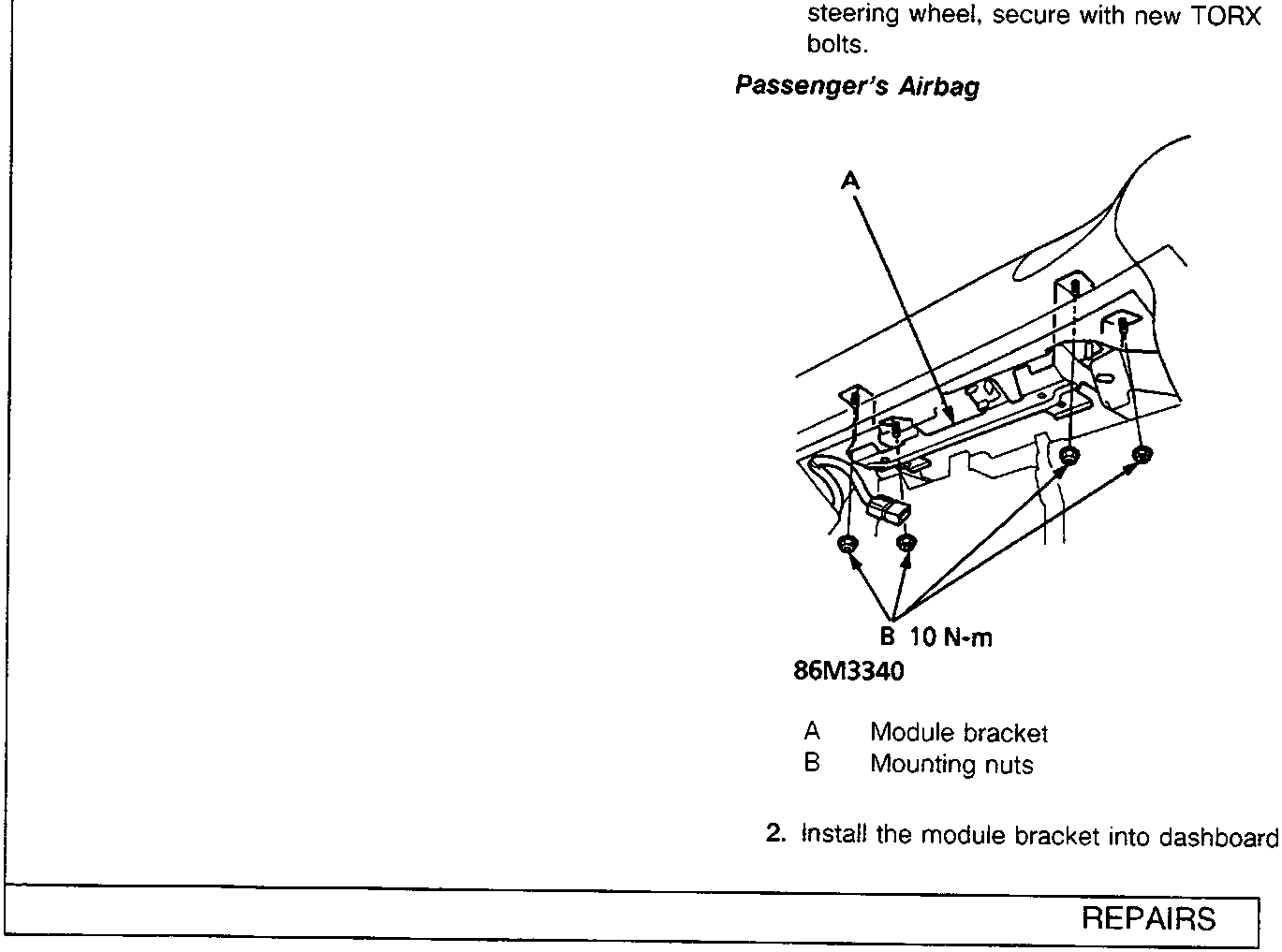

Diagram showing module bracket and mounting nuts for passenger's airbag on dashboard, reference 86M3340
  • A Module bracket
  • B Mounting nuts
  1. Install the module bracket into dashboard.
