Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition19 · Supplementary restraint system (SRS)
19 · Body & interior

Driver’s Airbag (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Supplementary restraint system (SRS)Driver’s Airbag · page 2 of 2

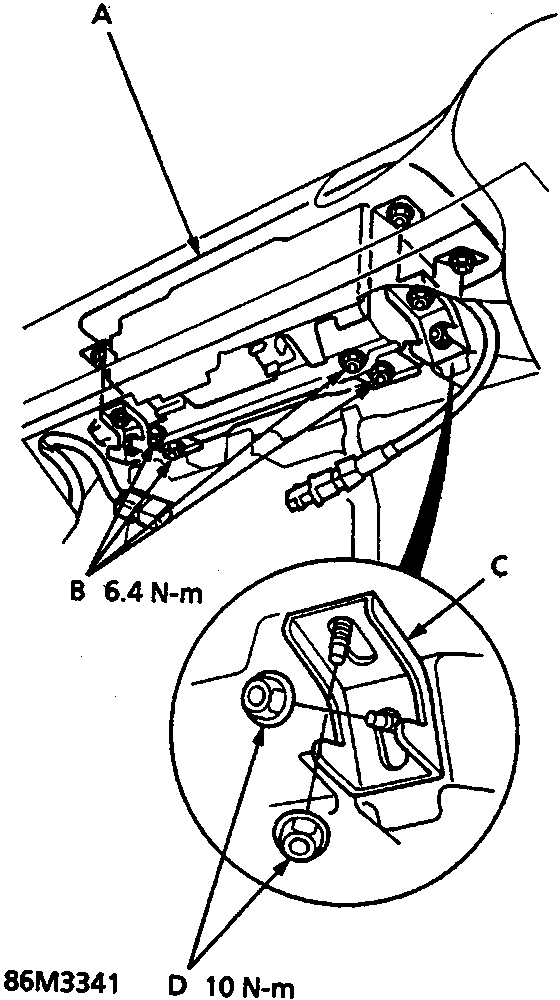

Diagram showing passenger's airbag, airbag mounting nuts, joint bracket, and joint bracket nuts with torque values of 6.4 N-m and 10 N-m
  • A Passenger's airbag
  • B Airbag mounting nuts
  • C Joint bracket
  • D Joint bracket nuts
  1. Position the passenger's airbag on the module bracket, then install the joint brackets.

Note: Press down and forward lightly on the airbag, ensure there are no gaps and then tighten the joint bracket mounting nuts.

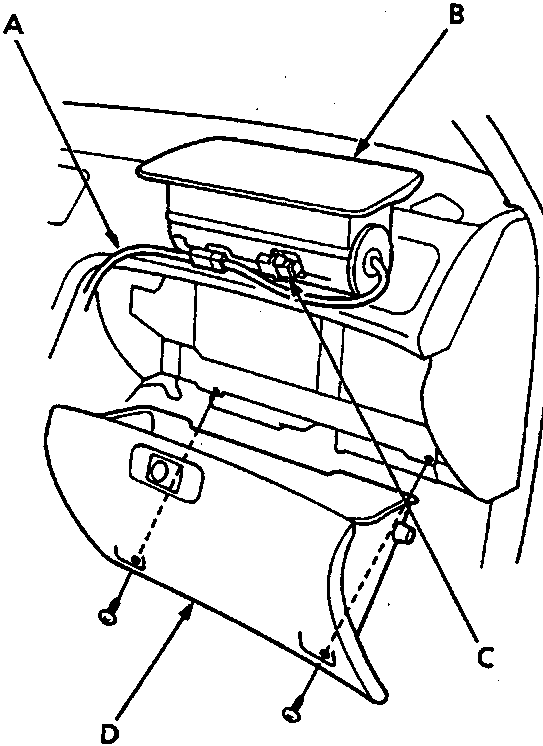

Diagram showing SRS main harness, passenger's airbag, short connector in holder, and glovebox
  • A SRS main harness
  • B Passenger's airbag
  • C Short connector – RED in holder
  • D Glovebox
  1. Remove the short connector and reconnect the airbag connectors. Store both short connector – RED and the airbag connector.
  2. Refit the glovebox.
