Cooling systemAir conditioning
Diagram

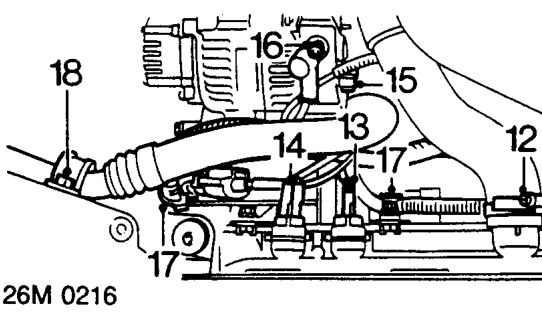

  1. Slacken clip and disconnect coolant hose from radiator inlet pipe.
  2. Disconnect radiator high temperature sensor multiplug.
  3. Disconnect 2 lucars from radiator low temperature sensor.
  4. Disconnect multiplug from alternator.
  5. Release cover and remove nut securing lead to alternator.
  6. Release harness from 2 RH cowl clips.

Air conditioning

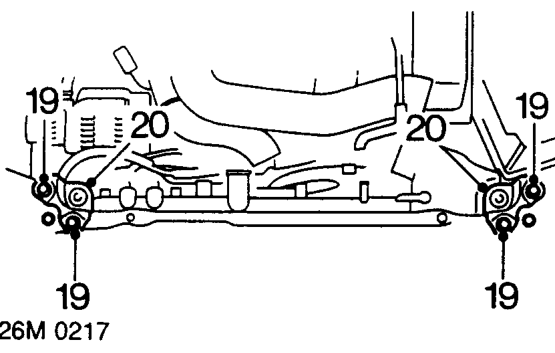

  1. Remove bolt securing air conditioning pipe to bonnet lock platform.
Air conditioning – Remove bolt securing air conditioning pipe to bonnet lock platform.

All models

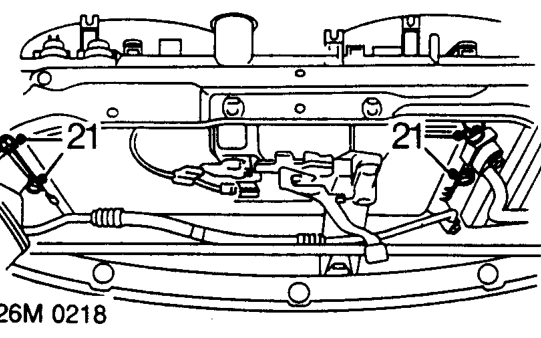

  1. Remove 4 bolts securing 2 radiator mounting brackets to bonnet lock platform.
  2. Remove 2 radiator mounting brackets.
All models – Remove 2 radiator mounting brackets.

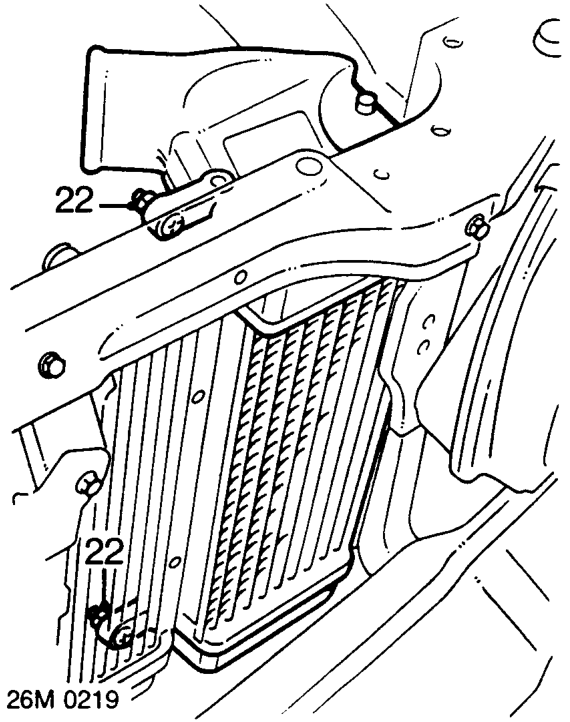

  1. Remove 4 bolts securing condenser to radiator.
All models – Remove 4 bolts securing condenser to radiator.
  1. Remove 2 Tx40 Torx bolts and nuts securing intercooler to radiator.
  2. Manoeuvre radiator and intercooler from engine compartment using assistance, remove radiator and intercooler. Do not carry out further dismantling if component is removed for access only.
