RH cooling fan

RH COOLING FAN

Service repair no - 26.25.34

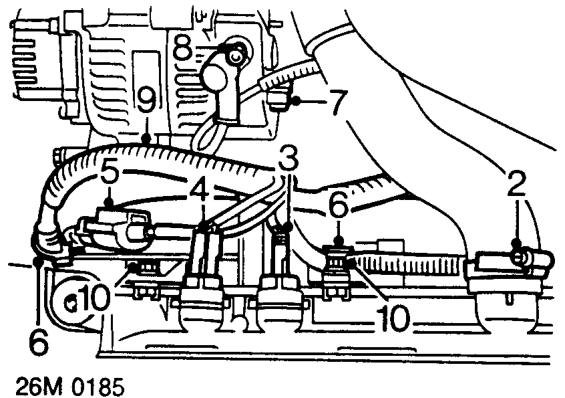

Remove

1. Disconnect battery earth lead.

2. Slacken clip and disconnect top hose from radiator.
3. Disconnect multiplug from radiator temperature sensor.
4. Disconnect 2 Lucars from radiator temperature sensor.
5. Disconnect cooling fan multiplug.
6. Release harness from 2 clips on fan cowl
7. Disconnect multiplug from alternator.
8. Release cover and remove nut securing cable to alternator.
9. Position harness aside.
10. Remove 2 bolts securing fan cowl to radiator, collect harness clip.
11. Release and remove radiator fan cowl assembly.

Refit

1. Position radiator fan cowl assembly, engage lug in mounting bracket hole.
2. Align fan cowl and harness clip to radiator, fit and tighten securing bolts.
3. Connect battery cable to alternator stud , tighten nut to 4 Nm and position cover.
4. Connect multiplug to alternator.
5. Secure harness to clips on fan cowl.
6. Connect multiplug to radiator temperature sensor.
7. Connect Lucars to radiator temperature sensor.
8. Connect top hose to radiator and tighten clip.
9. Top-up cooling system. See MAINTENANCE.
