Cooling systemRadiator

RADIATOR

Service repair no - 26.40.04

Remove

  1. Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  2. Remove under belly panel. See BODY, Repairs.
  3. Drain cooling system. See MAINTENANCE.
Radiator – Drain cooling system. See MAINTENANCE.

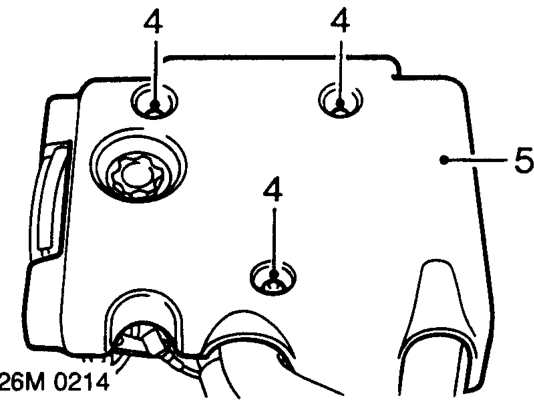

  1. Remove 3 bolts securing sound deadening pad to engine.
  2. Remove sound deadening pad.
Radiator – Remove sound deadening pad.

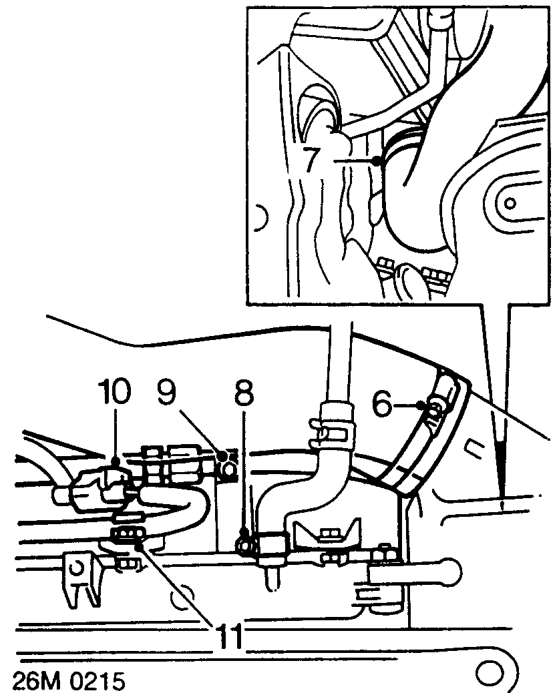

  1. Slacken clip and disconnect air intake hose from intercooler.
  2. Slacken clip and disconnect turbocharger hose from intercooler.
  3. Slacken clip and disconnect expansion tank return pipe from radiator.

Air conditioning

  1. Remove bolt securing air conditioning pipe to LH cooling fan cowl.

All models

  1. Disconnect LH cooling fan motor multiplug.
  2. Release harness from LH cowl clip.
