Air conditioning

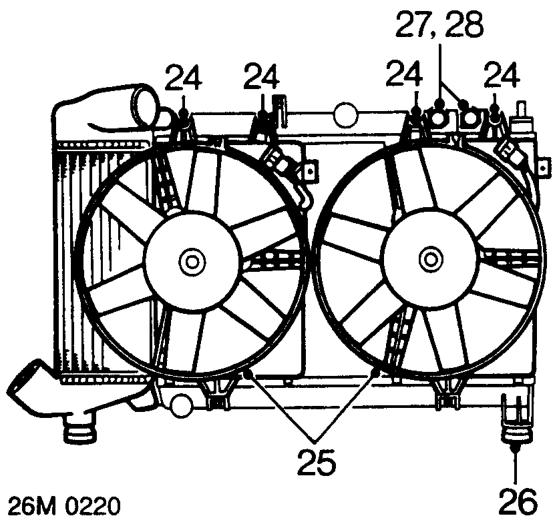

24. Remove 4 screws securing fan cowls to radiator.
25. Remove 2 fan cowl assemblies and collect 2 harness clips.
26. Remove lower mounting rubber from radiator.
27. Remove 2 locking rings securing temperature sensors to radiator.
28. Noting their fitted position remove temperature sensors.
29. Fit temperature sensors to radiator and secure with locking rings.
30. Fit lower mounting rubber to radiator.
31. Position fan cowl assemblies and harness clips to radiator and secure with bolts.

Refit

1. Manoeuvre radiator and intercooler into position using assistance and locate in lower fixings.
2. Align intercooler to radiator, fit and tighten nuts and bolts.
3. Align condenser to radiator, fit and tighten bolts.
4. Fit radiator top mounting brackets, fit and tighten bolts to 9 Nm.

Air conditioning

5. Align air conditioning pipe bracket to bonnet lock platform, fit and tighten bolt.

All models

6. Secure harness to RH cowl clips.
7. Position alternator lead, fit and tighten nut to 4 Nm and secure cover.
8. Connect multiplug to alternator.
9. Connect lucars to radiator temperature sensor.
10. Connect radiator temperature sensor multiplug.
11. Secure harness to LH cowl clip.
12. Connect LH cooling fan multiplug.

Air conditioning

13. Align air conditioning pipe bracket to LH cowl, fit and tighten bolt.

All models

14. Connect turbocharger hose to intercooler and tighten clip.
15. Connect coolant hose to radiator inlet pipe and tighten clip.
16. Connect air intake hose to intercooler and tighten clip.
17. Connect expansion tank return pipe to radiator and tighten clip.
18. Fit sound deadening pad to engine and secure with bolts.
19. Refill cooling system. See MAINTENANCE.
20. Fit under belly panel. See BODY, Repairs.
21. Fit air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
