Rover 620 Diesel Repair Manual Supplement (1995-1999)05 · Cooling system
05 · Engine

Coolant pump - non air conditioning

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Repairs › Coolant pump - non air conditioning
Cooling systemCoolant pump - non air conditioning

COOLANT PUMP - NON AIR CONDITIONING

Service repair no - 26.50.01

Remove

  1. Remove under belly panel. See BODY, Repairs.
  2. Drain cooling system. See MAINTENANCE.

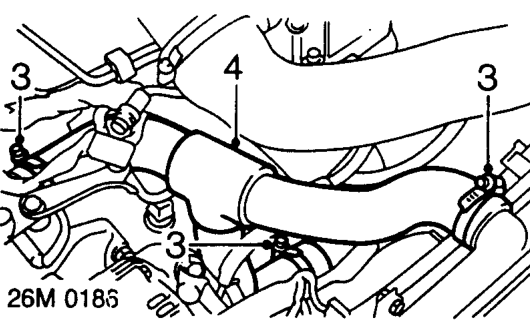

Coolant pump - non air conditioning – Drain cooling system. See MAINTENANCE.
  1. Slacken clips and release radiator top hose from engine, radiator and thermostat housing.
  2. Remove radiator top hose from engine.

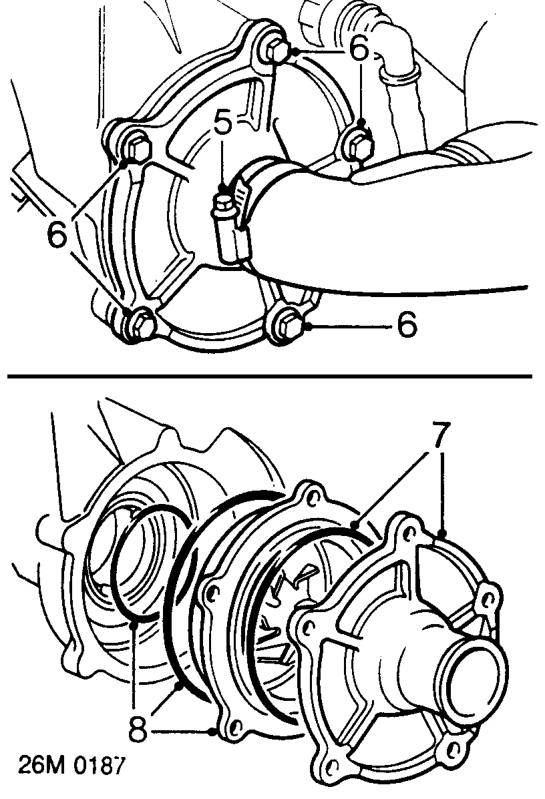

Coolant pump - non air conditioning – Remove radiator top hose from engine.
  1. Slacken clip and release coolant hose from pump housing.
  2. Remove 5 bolts securing cover to coolant pump.
  3. Remove cover and discard ’O’ ring.
  4. Remove coolant pump from housing and discard ’O’ rings.
