Workshop Manuals Factory service & repair Rover
Rover 620 Diesel Repair Manual Supplement (1995-1999)05 · Cooling system
05 · Engine

Coolant pump housing

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Repairs › Coolant pump housing
Cooling systemCoolant pump housing · page 1 of 2

Refit

  1. Clean coolant pump housing and mating faces.
  2. Lubricate new ’O’ rings with Loctite 405 and fit to coolant pump and coolant pump cover.
  3. Fit coolant pump and cover, position power steering pipe bracket, fit 5 bolts and tighten to 45 Nm.
  4. Connect hose to coolant pump housing and tighten clip.
  5. Fit radiator top hose to engine and tighten clip.
  6. Connect radiator top hose to radiator and thermostat housing and tighten clips.
  7. Refit under belly panel. See BODY, Repairs.
  8. Refill cooling system. See MAINTENANCE.

COOLANT PUMP HOUSING

Service repair no - 26.50.03

Remove

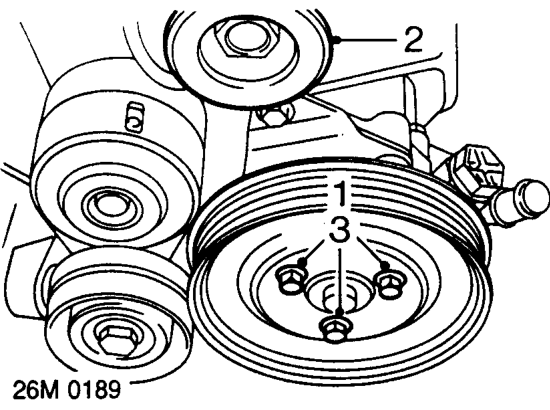

Coolant pump housing – Service repair no - 26.50.03
  1. Slacken 3 bolts securing pulley to power steering pump.
  2. Remove alternator. See ELECTRICAL, Repairs.
  3. Remove 3 bolts securing pulley to power steering pump.
  4. Drain cooling system. See MAINTENANCE.

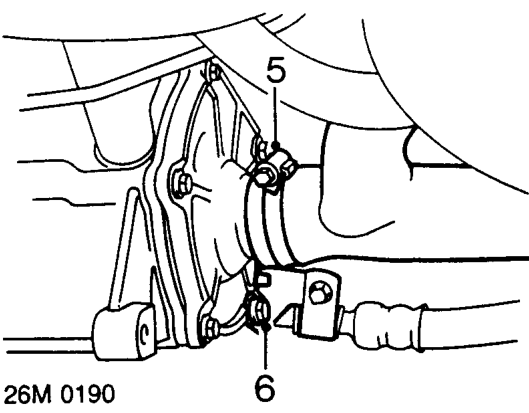

Coolant pump housing – Drain cooling system. See MAINTENANCE.
  1. Slacken clip and disconnect hose from coolant pump housing.
  2. Remove bolt securing power steering pipe bracket to coolant pump housing.
