Cooling systemLH cooling fan

LH COOLING FAN

Service repair no - 26.25.23

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

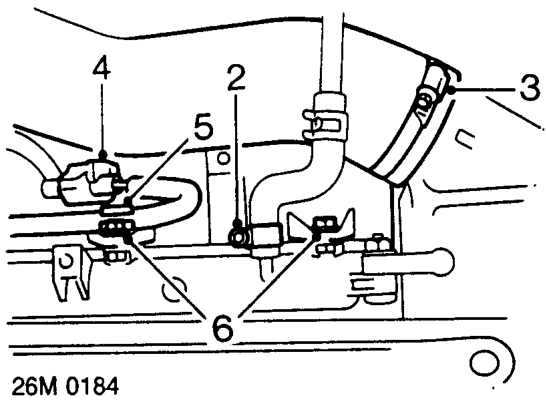

Lh cooling fan – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  1. Slacken clip and disconnect expansion tank return pipe from radiator.
  2. Slacken clip and disconnect top hose from intercooler.
  3. Disconnect cooling fan multiplug.
  4. Release harness from clip on fan cowl.
  5. Remove 2 bolts securing fan cowl to radiator, collect harness clip.
  6. Release and remove radiator fan cowl assembly.

Refit

  1. Position radiator and fan cowl assembly, engage lug in mounting bracket hole.
  2. Align fan cowl and harness clip to radiator, fit and tighten securing bolts.
  3. Connect cooling fan multiplug.
  4. Secure harness to clip on fan cowl.
  5. Connect top hose to intercooler and tighten clip.
  6. Connect expansion tank return pipe to radiator and tighten clip.
  7. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  8. Top-up cooling system. See MAINTENANCE.
