Wire crossed in connector (Wiring diagrams)

Wire crossed in connector

Symptom

Incorrect circuit operation. Possibly more than one circuit affected.

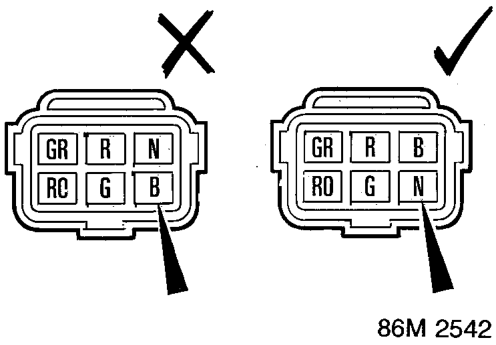

Black(B) and Brown(N) wires crossed.

Cause

The arrangement of the wires in the connector on the vehicle does not match that shown in the connector view section.

Action

Remove wire terminals from connector block and arrange correctly, ensuring proper retention of terminals in connector block. Check correct operation of circuit(s).

Wire missing from connector

Symptom

Incorrect circuit operation. Possibly more than one circuit affected.

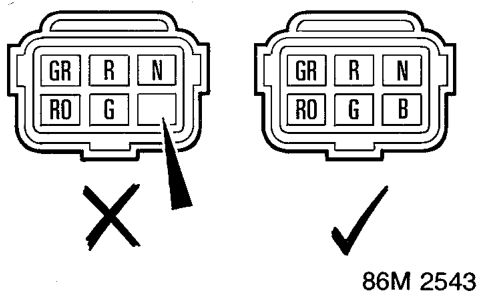

Black(B) wire missing

Cause

One of the wires which should be in the connector is missing. The arrangement of the wires in the connector on the vehicle does not match that shown in the connector view section.

Action

Locate missing wire (peel back harness tape/insulation if necessary). When replacing a wire or terminal be careful not to make the wire too short, if necessary add a length of wire and join using a "Duraseal" heatshrink connector. Refit wire terminal into connector block correctly, ensuring proper retention of terminals in connector block. Check correct operation of circuit(s).
