Description and operation › Front brake caliper components
BrakesFront brake caliper components

FRONT BRAKE CALIPER COMPONENTS

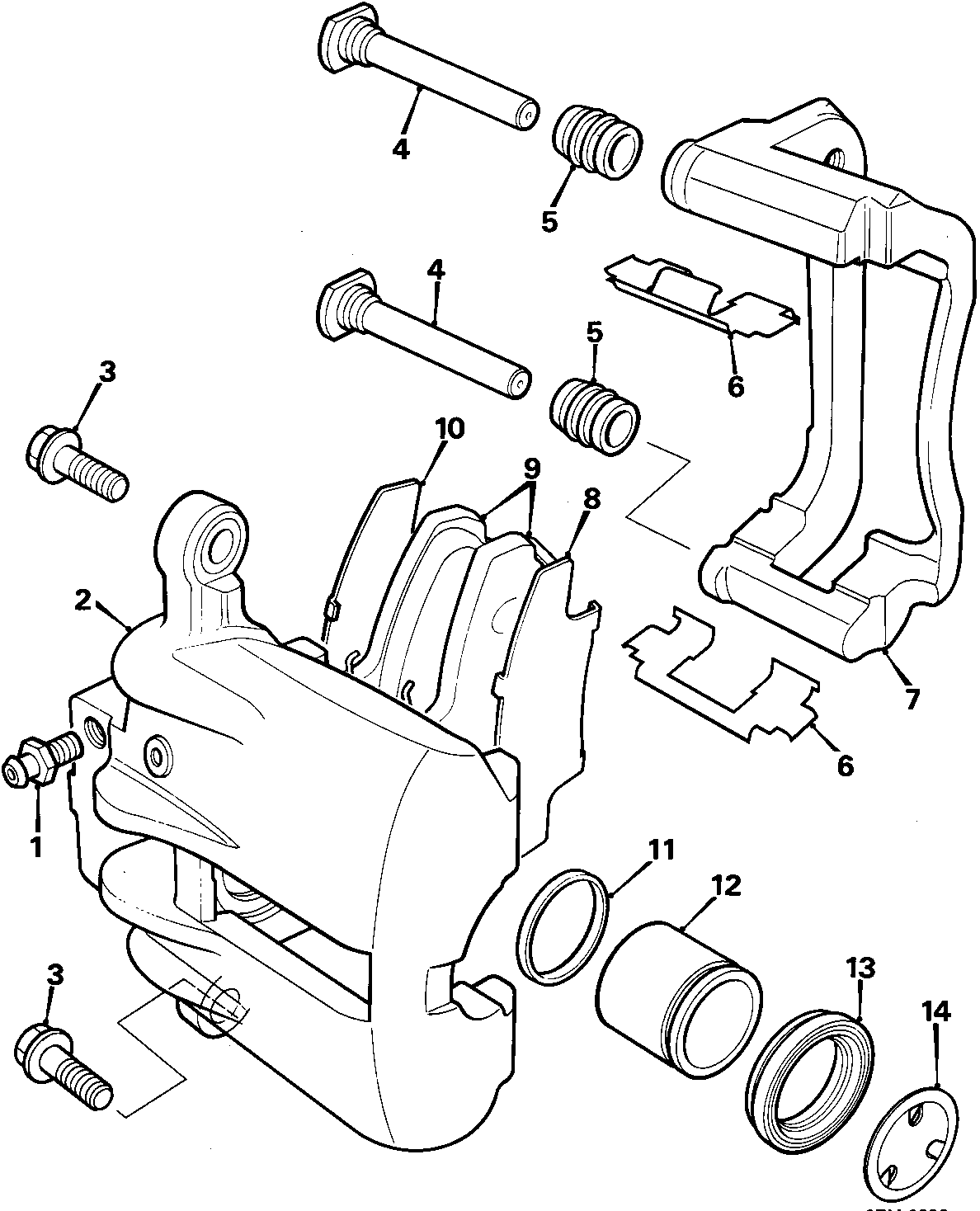

Exploded view diagram of a front brake caliper assembly showing numbered components including the caliper body, carrier, pads, piston, and guide pins.
  1. Bleed screw
  2. Caliper body
  3. Guide pin bolt
  4. Guide pin
  5. Boot
  6. Retainer
  7. Caliper carrier
  8. Outer pad shim
  9. Brake pads
  10. Inner pad shim
  11. Piston seal
  12. Piston
  13. Dust cover
  14. Shim
