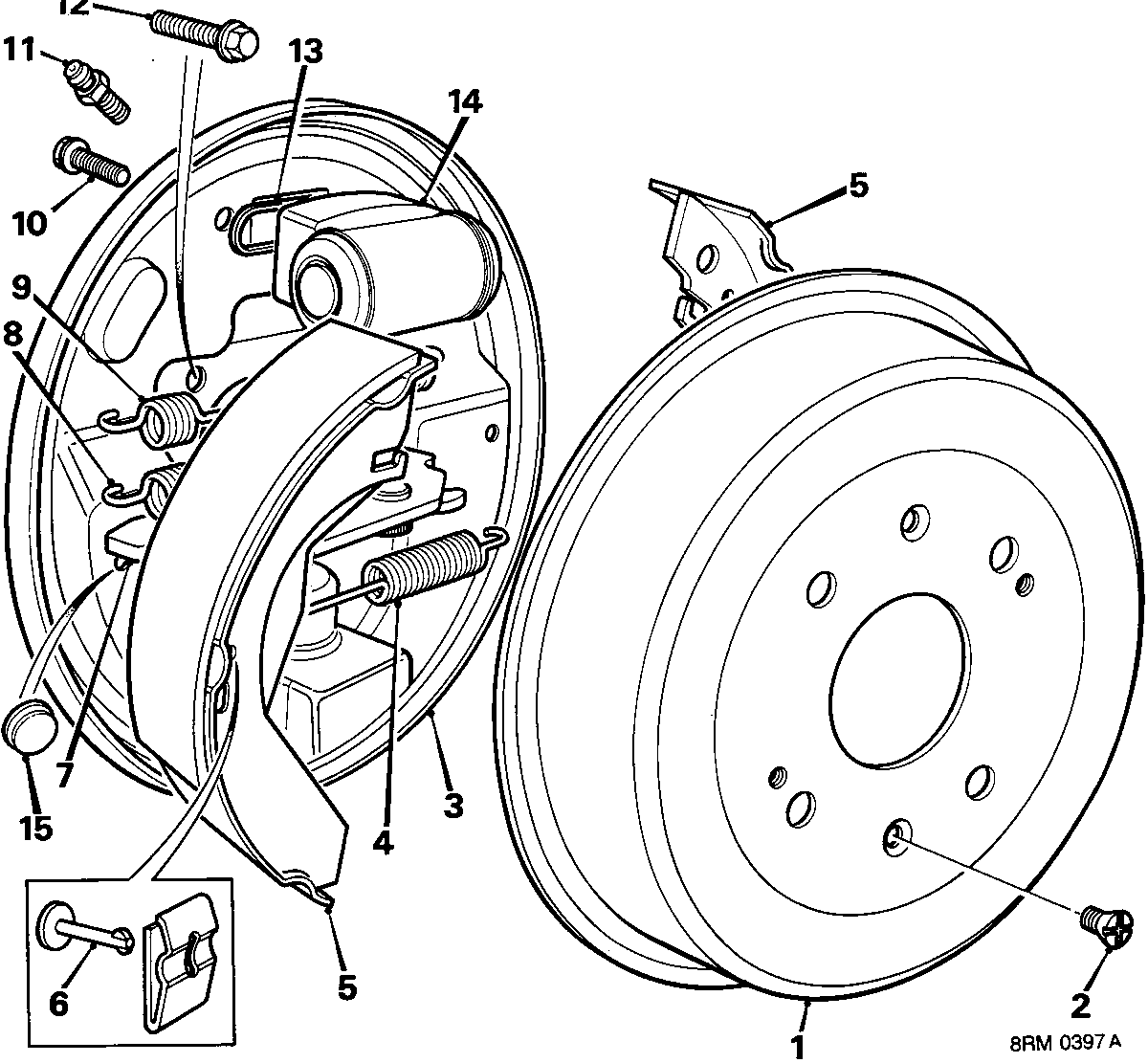

REAR DRUM BRAKE COMPONENTS

1. Brake drum	9. Spring, cylinder return
2. Screw – 2 off, drum to hub	10. Bolt, backplate to wheel cylinder
3. Backplate	11. Bleed screw
4. Return spring	12. Backplate securing screw – 4 off
5. Brake shoe	13. Seal, backplate to wheel cylinder
6. Brake shoe retainer	14. Wheel cylinder
7. Strut, adjuster quadrant	15. Inspection plug
8. Spring, adjuster
