Cooling system (1.4 K16): Description and operation

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Description and operation › 1.4 K16
Cooling system1.4 K16

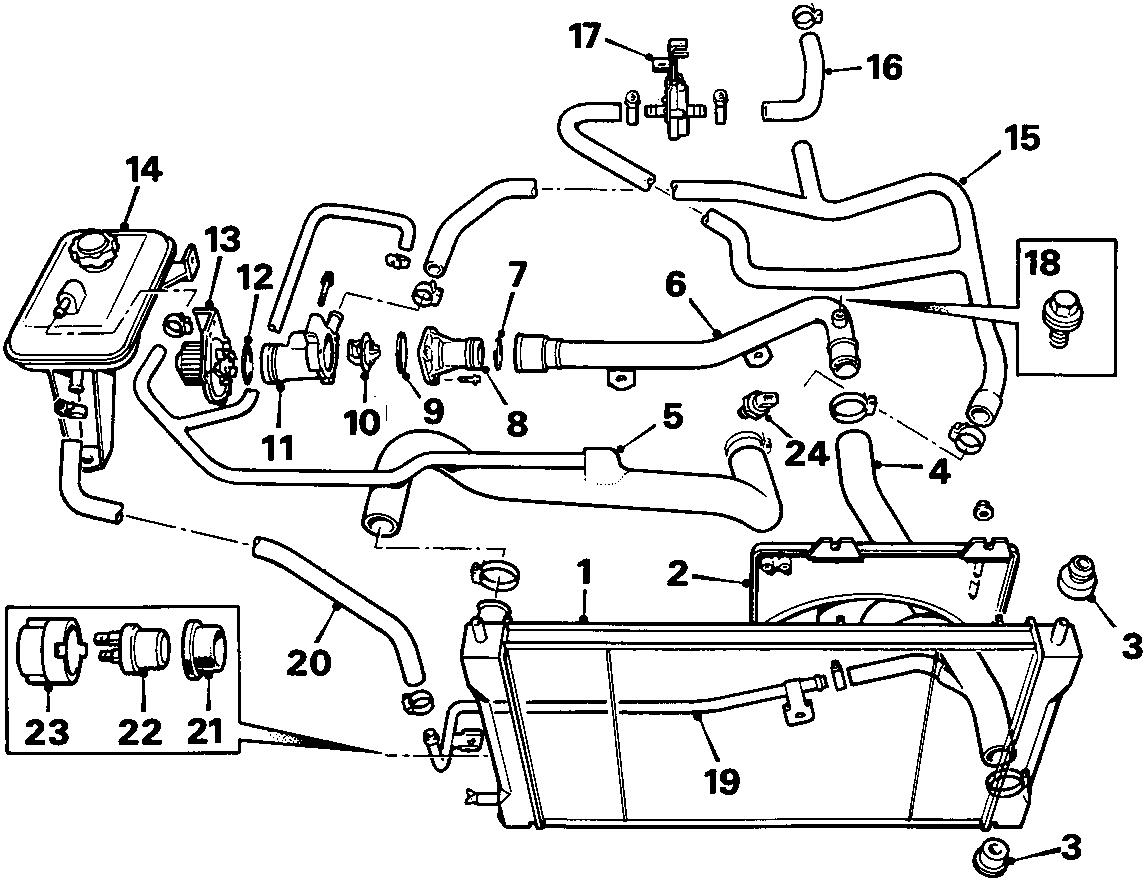

Exploded view diagram of the cooling system components for the 1.4 K16 engine, with parts numbered 1 through 24.

1.4 K16

1. Radiator13. Coolant pump
2. Cooling fan and cowl14. Expansion tank
3. Radiator mounting bushes15. Hose – heater matrix return
4. Bottom hose16. Hose – heater matrix feed
5. Top hose17. Heater temperature control valve
6. Pipe – bottom hose to thermostat18. Bleed screw
7. 'O' ring – pipe to thermostat housing19. Pipe – expansion tank to bottom hose
8. Thermostat cover20. Hose – expansion tank return
9. Sealing ring21. Sealing ring
10. Thermostat22. Thermostatic switch
11. Thermostat housing23. Locking ring
12. Coolant pump 'O' ring seal24. Coolant temperature sensor
