2.0 Naturally Aspirated – Non Air Conditioning (Cooling system)

Make

Rover

Model

Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual

Section

Description and operation › 2.0 Naturally Aspirated – Non Air Conditioning

Cooling system2.0 Naturally Aspirated – Non Air Conditioning

2.0 Naturally Aspirated – Non Air Conditioning

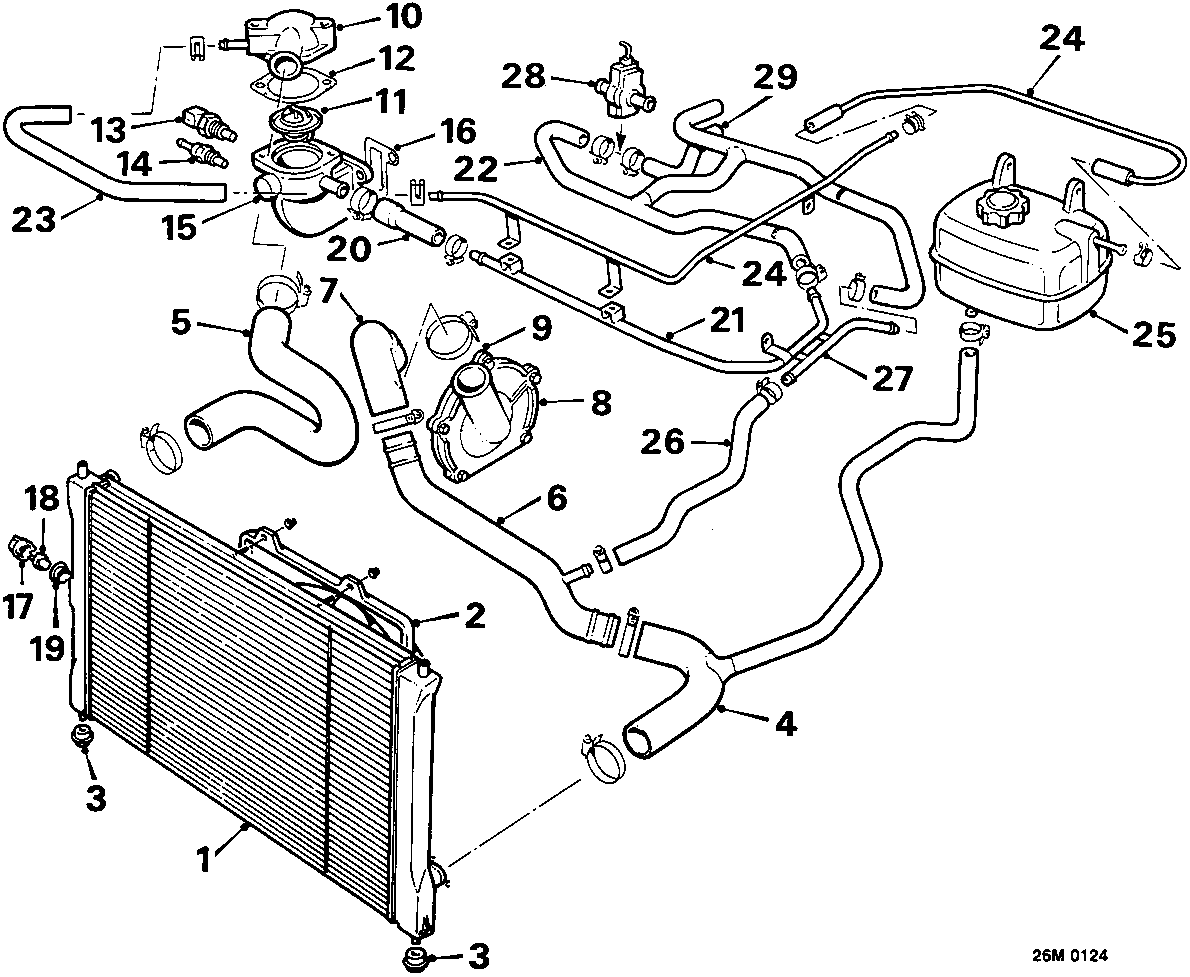

1. Radiator	16. Gasket
2. Cooling fan and cowl	17. Locking ring
3. Radiator mounting bushes	18. Thermostatic switch
4. Bottom hose	19. Seal
5. Top hose	20. Hose – thermostat housing to coolant rail
6. Pipe – bottom hose to coolant pump housing hose	21. Coolant rail
7. Coolant pump housing hose	22. Hose – Coolant rail to heater
8. Coolant pump housing	23. Hose – thermostat cover to coolant expansion pipe
9. Coolant pump	24. Coolant expansion pipe
10. Thermostat cover	25. Coolant expansion tank
11. Thermostat	26. Hose – connecting pipe to bottom pipe
12. Gasket	27. Connecting pipe
13. Coolant temperature sensor	28. Heater valve
14. Coolant temperature transmitter	29. Hose – heater valve to heater matrix
15. Thermostat housing
