2.0 Turbo with Air Conditioning (Cooling system)

Make

Rover

Model

Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual

Section

Description and operation › 2.0 Turbo with Air Conditioning

Cooling system2.0 Turbo with Air Conditioning · page 1 of 2

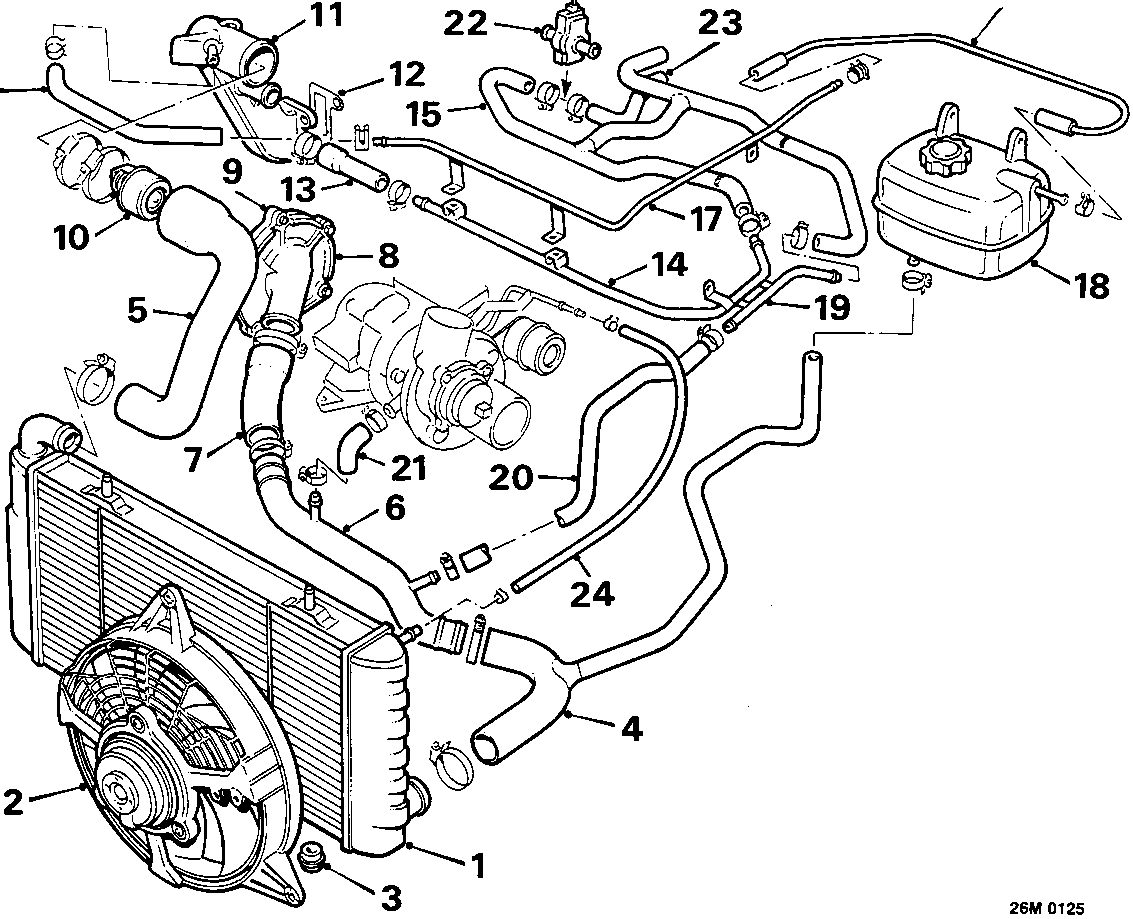

2.0 Turbo with Air Conditioning

1. Radiator	13. Hose – coolant outlet elbow to coolant rail
2. Cooling fan and cowl	14. Coolant rail
3. Radiator mounting bushes	15. Hose – coolant rail to heater
4. Bottom hose	16. Hose – coolant outlet elbow to coolant expansion pipe
5. Top hose	17. Coolant expansion pipe
6. Pipe – bottom hose to coolant pump housing hose	18. Coolant expansion tank
7. Coolant pump housing hose	19. Connecting pipe
8. Coolant pump housing	20. Hose – connecting pipe to bottom hose
9. Coolant pump	21. Hose – bottom pipe to turbo outlet
10. Thermostat	22. Heater valve
11. Coolant outlet elbow	23. Hose – heater valve to heater matrix
12. Gasket	24. Hose – radiator to turbo inlet
