Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual12 · Cooling system
12 · Engine

2.0 Naturally Aspirated with Air Conditioning (Cooling system)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Description and operation › 2.0 Naturally Aspirated with Air Conditioning
Cooling system2.0 Naturally Aspirated with Air Conditioning

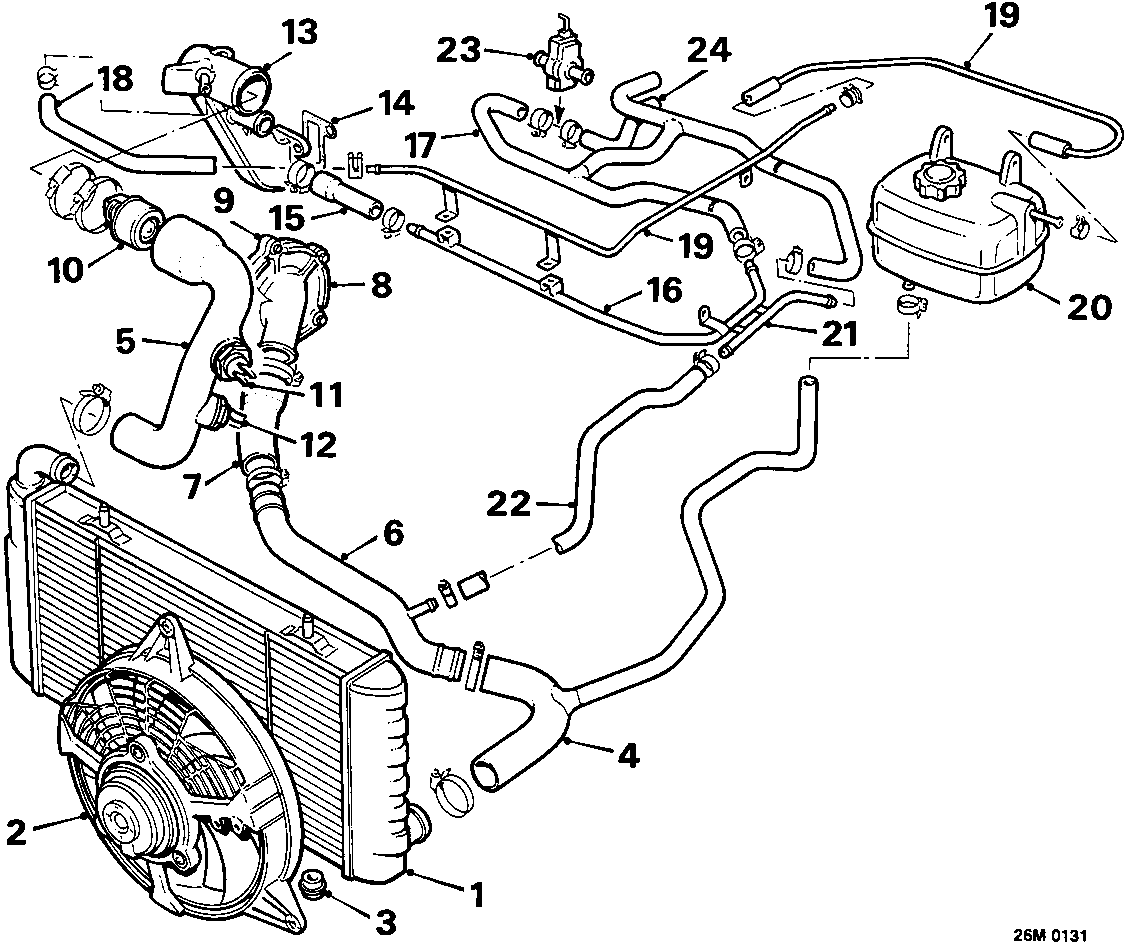

Diagram of the cooling system components for a 2.0 Naturally Aspirated engine with air conditioning, showing radiator, hoses, pump, and expansion tank with numbered callouts 1 through 24.

2.0 Naturally Aspirated with Air Conditioning

  1. Radiator
  2. Cooling fan and cowl
  3. Radiator mounting bushes
  4. Bottom hose
  5. Top hose
  6. Pipe – bottom hose to coolant pump housing hose
  7. Coolant pump housing hose
  8. Coolant pump housing
  9. Coolant pump
  10. Thermostat
  11. Temperature switch – air conditioning fan
  12. Temperature switch – radiator cooling fan
  1. Coolant outlet elbow
  2. Gasket
  3. Hose – coolant outlet elbow to coolant rail
  4. Coolant rail
  5. Hose – heater matrix to coolant rail
  6. Hose – coolant outlet elbow to expansion pipe
  7. Coolant expansion pipe
  8. Expansion tank
  9. Connecting pipe
  10. Hose – connecting pipe to bottom pipe
  11. Heater valve
  12. Hose – heater valve to heater matrix
