Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual12 · Cooling system
12 · Engine

Cooling system (1.6 dohc): Description and operation

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Description and operation › 1.6 dohc
Cooling system1.6 dohc

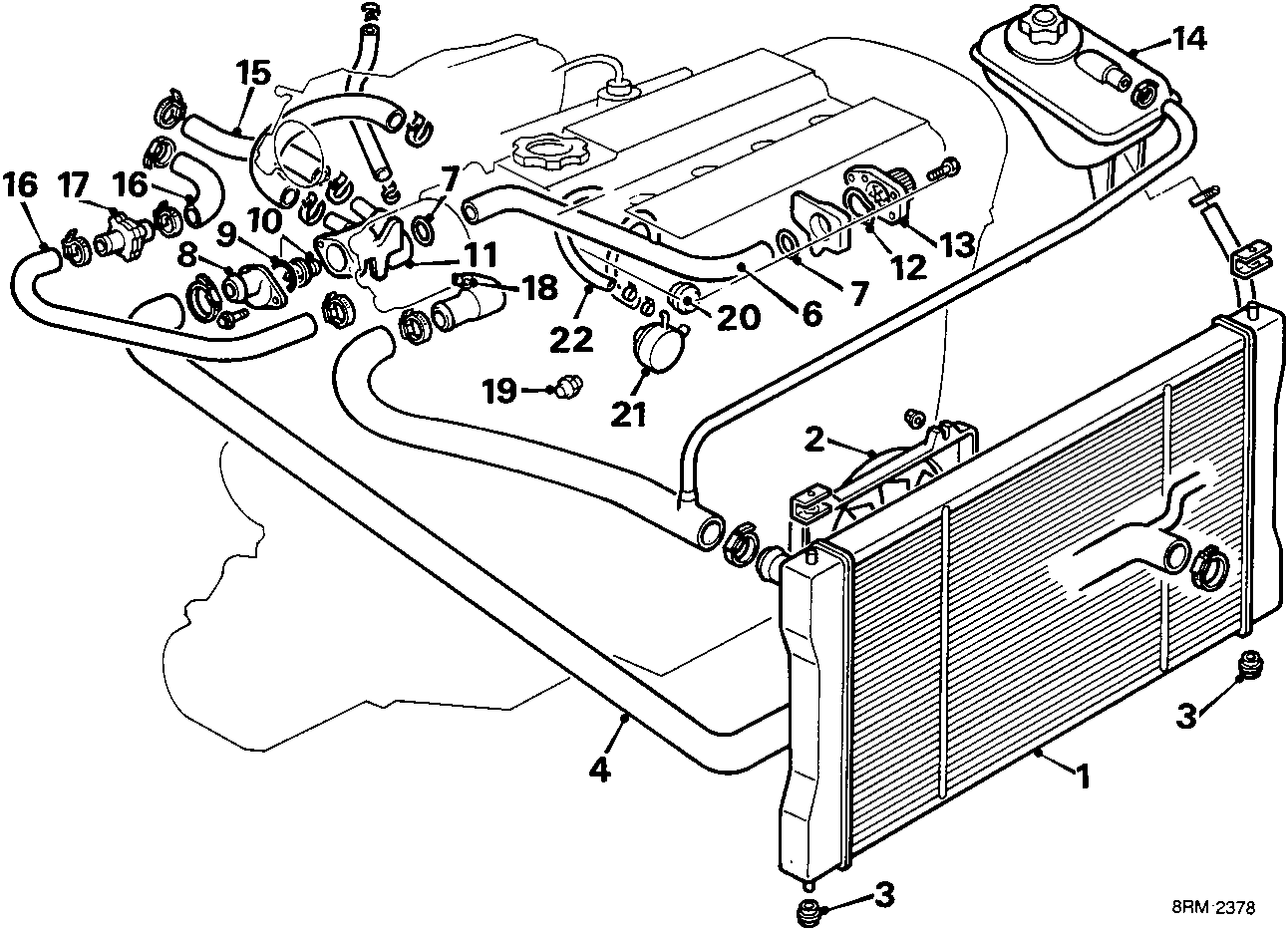

Exploded view diagram of the cooling system components including radiator, hoses, thermostat, pump, and expansion tank with numbered callouts 1 through 22.

1.6 DOHC

  1. Radiator
  2. Cooling fan and cowl
  3. Radiator mounting bushes
  4. Bottom hose
  5. Top hose
  6. Pipe – thermostat housing to coolant pump
  7. 'O' ring seal
  8. Thermostat cover
  9. Gasket
  10. Thermostat
  11. Thermostat housing
  12. Coolant pump 'O' ring seal
  13. Coolant pump
  14. Expansion tank
  15. Hose – heater matrix return
  16. Hose – heater matrix feed
  17. Heater temperature control valve
  18. Bleed screw
  19. Coolant temperature sensor
  20. Thermostatic switch
  21. Oil cooler
  22. Hose – oil cooler return
