Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual15 · Manual gearbox 1.4
15 · Transmission

Gearbox assembly (page 2 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Manual gearbox 1.4Gearbox assembly · page 2 of 3

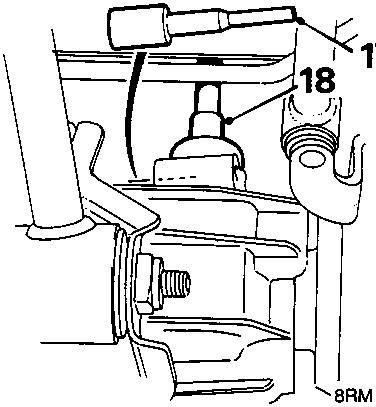

Diagram showing rubber pin securing speedometer cable to gearbox, with callout numbers 17 and 18
  1. Remove rubber pin securing speedometer cable to gearbox.
  2. Release speedometer cable from gearbox.

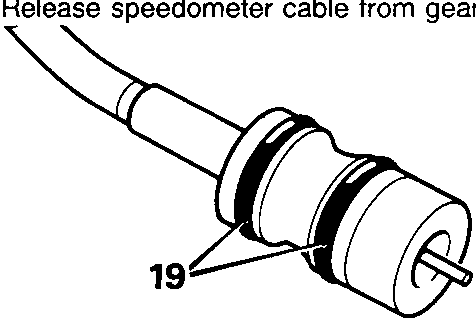

Diagram showing speedometer cable end with 'O' rings, with callout number 19
  1. Remove 'O' rings from cable and discard.

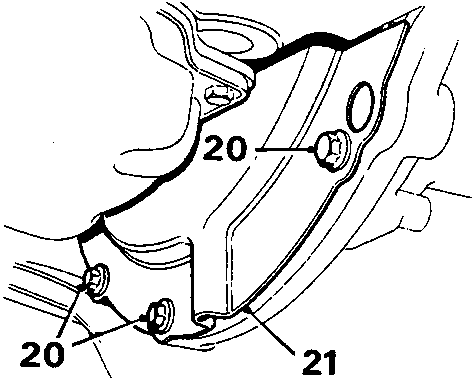

Diagram showing flywheel lower cover plate secured by bolts, with callout numbers 20 and 21
  1. Remove 3 bolts securing flywheel lower cover plate to engine.
  2. Remove lower cover plate.

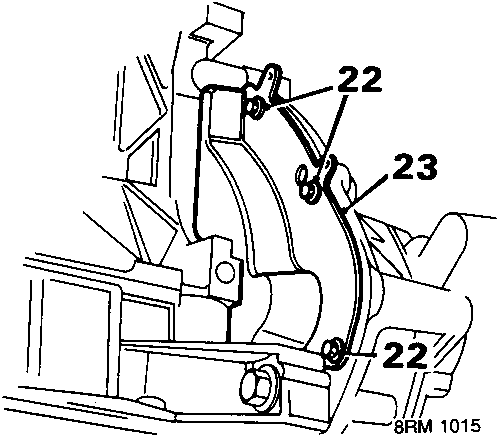

Diagram showing flywheel front cover plate secured by bolts, with callout numbers 22 and 23
  1. Remove 3 bolts securing flywheel front cover plate.
  2. Remove front cover plate.

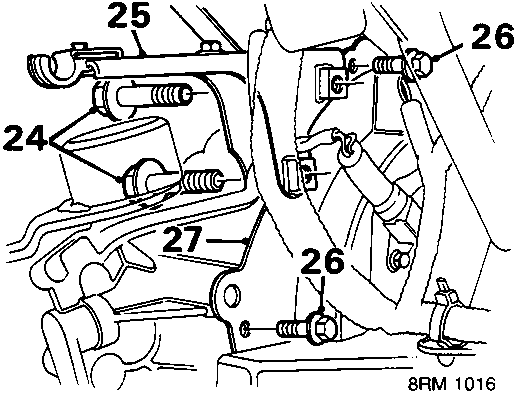

Diagram showing clutch cable support bracket and flywheel rear cover plate, with callout numbers 24, 25, 26 and 27
  1. Remove 2 bolts securing clutch cable support and harness bracket to gearbox flange.
  2. Remove bracket.
  3. Remove 2 bolts securing flywheel rear cover plate.
  4. Remove rear cover plate.

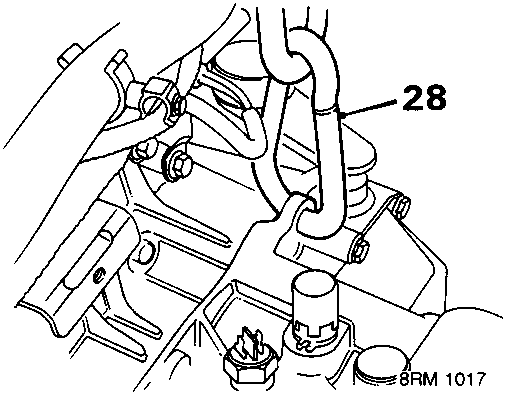

Diagram showing lifting equipment attached to gearbox lifting eye, with callout number 28
  1. Fit suitable lifting equipment to the gearbox lifting eye.
