Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual15 · Manual gearbox 1.4
15 · Transmission

Gearbox assembly (page 3 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Manual gearbox 1.4Gearbox assembly · page 3 of 3
Blank page with faint border lines, no specific part or operation shown

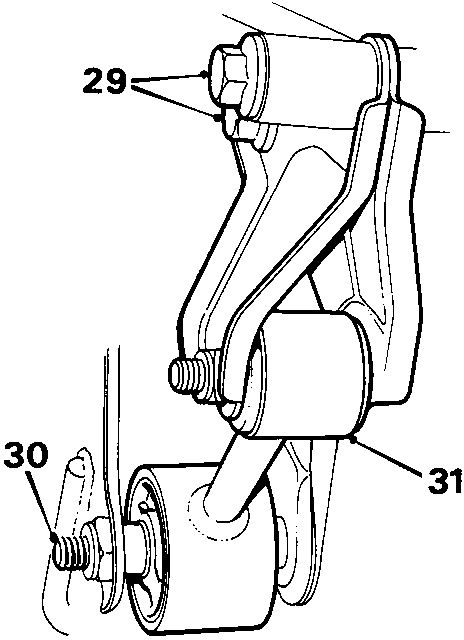

Diagram showing engine steady bar bracket bolts (29), body bracket bolt (30), and steady bar (31)
  1. Remove 2 bolts engine steady bar bracket to gearbox.
  2. Slacken bolt engine steady bar to body bracket.
  3. Move steady bar and bracket aside.

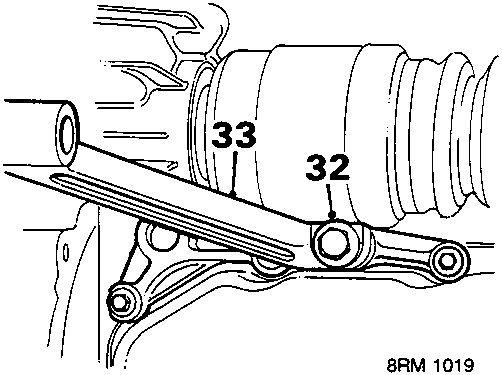

Diagram showing anti-beaming bracket with bolt (32) and bracket (33)
  1. Remove remaining bolt from anti – beaming bracket.
  2. Remove anti – beaming bracket.
  3. Take weight of gearbox on chains.

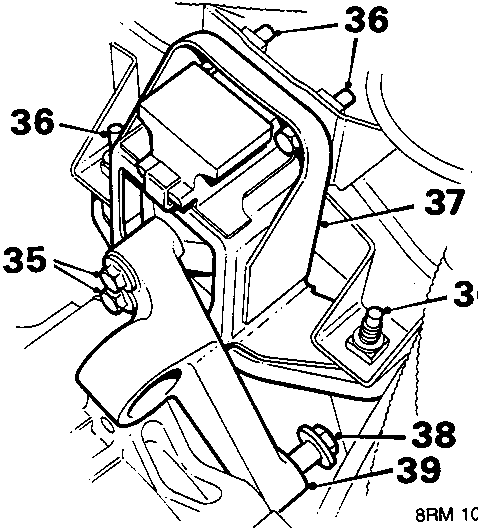

Diagram showing gearbox bracket bolts (36), L.H. mounting (37), bracket bolts (38), and bracket (39)
  1. Remove 2 bolts securing gearbox bracket to L.H. mounting.
  2. Remove 4 bolts securing L.H. mounting to body.
  3. Lower engine and remove L.H. mounting.
  4. Remove 2 bolts securing bracket to gearbox.
  5. Remove bracket.
  6. Fit wooden block to jack and position jack to support engine.

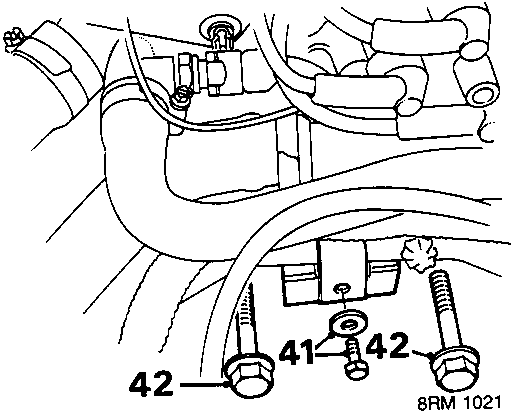

Diagram showing A/C pipe bracket bolt (41) and bracket bolts (42)
  1. Remove bolt A/C pipe to bracket on gearbox.
  2. Remove 2 bolts securing bracket to engine and gearbox.
