REAR WIPER ARM AND BLADE – TOURER

Service Repair No. Arm 84.35.01
Service Repair No. Blade 84.35.02

Remove

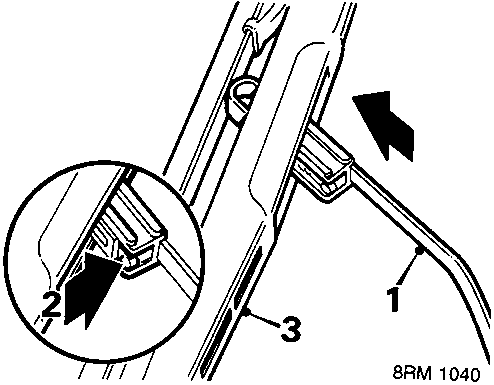

Diagram showing wiper arm, blade, and clip with callout numbers 1, 2, and 3
  1. Raise wiper arm.
  2. Press clip and release blade.
  3. Remove wiper blade.

Arm assembly

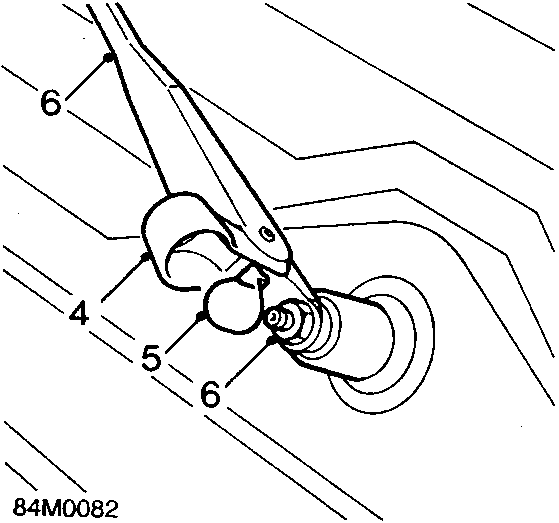

Diagram showing wiper arm assembly on spindle with callout numbers 4, 5, 6
  1. Release wiper arm nut cover.
  2. Prise washer jet from wiper spindle.
  3. Remove nut and arm from motor spindle.

Refit

  1. Fit wiper blade to arm and ensure blade is secured with clip.
  2. Position wiper arm on spindle.
  3. Fit nut and tighten to 14 Nm.
  4. Fit washer jet to wiper spindle.
  5. Secure nut cover.

REAR WIPER MOTOR – TOURER

Service Repair No. 84.35.12

Remove

  1. Remove wiper arm, see Rear wiper arm and blade – Tourer.
  2. Remove taildoor trim pad, see BODY – Repairs.

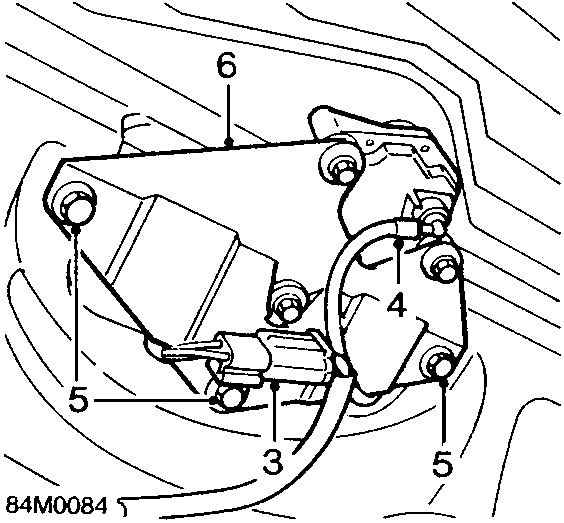

Diagram showing rear wiper motor assembly mounted to tailgate with callout numbers 3, 4, 5, 6
  1. Disconnect multiplug from wiper motor.
  2. Release washer tube from wiper motor spindle.
  3. Remove 3 bolts securing wiper motor bracket to tailgate.
  4. Remove wiper motor assembly from tailgate.

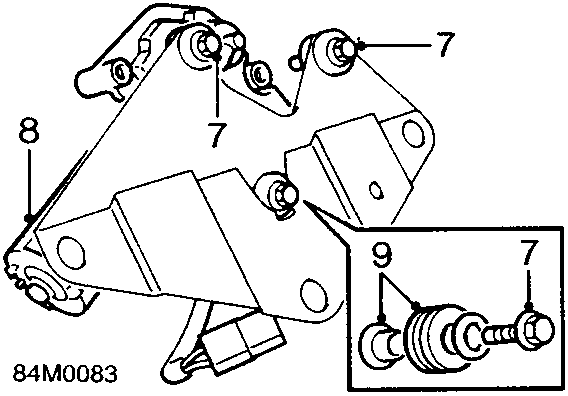

Diagram showing wiper motor removed from mounting bracket with callout numbers 7, 8, 9
  1. Remove 3 bolts securing wiper motor to mounting bracket.
  2. Remove wiper motor from mounting bracket.
  3. Remove 3 rubber bushes and steel inserts from wiper motor bracket.
Illustrates lower chassis crossmember mounting bracket location
