Wipers and washersRemove

Service Repair No. Arm – 84.15.02
Service Repair No. Blade – 84.15.05

Remove

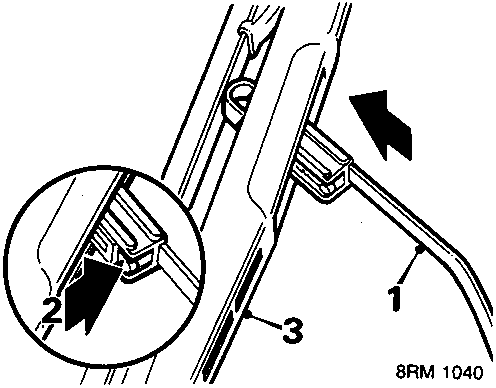

Diagram showing wiper arm, blade clip, and release mechanism with callout numbers 1, 2, 3
  1. Raise wiper arm.
  2. Press clip and release blade.
  3. Remove wiper blade.

Arm Assembly

  1. Raise bonnet.

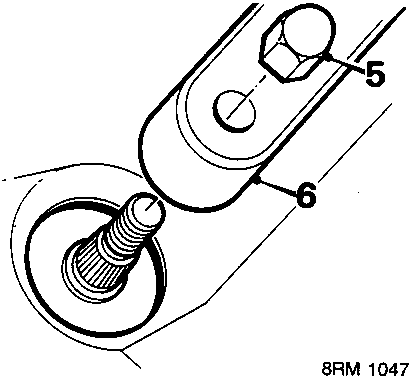

Diagram showing wiper spindle nut and arm removal with callout numbers 5, 6
  1. Remove wiper spindle nut.
  2. Remove wiper arm.

Refit

  1. Fit wiper blade to arm and ensure blade is secured with clip.
  2. Position arm in park position and engage spindle splines.
  3. Fit and tighten wiper arm nut to 14 Nm.
  4. Lower bonnet.

WIPER ARM AND BLADE – REAR SCREEN

Service Repair No. Arm – 84.35.01
Service Repair No. Blade – 84.35.02

Remove

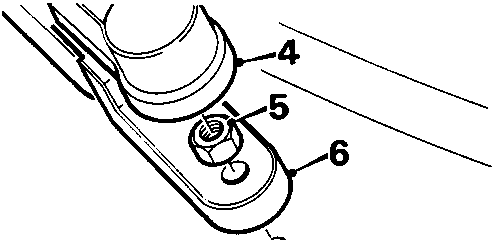

Diagram showing rear wiper arm assembly with callout numbers 4, 5, 6
  1. Raise wiper arm
  2. Press clip and release blade.
  3. Remove wiper blade.

Arm assembly

Diagram showing wiper arm nut cover and spindle detail
  1. Remove wiper arm nut cover.
  2. Remove wiper arm nut.
  3. Remove wiper arm.

Refit

  1. Fit wiper blade and ensure blade is secured with clip.
  2. Operate, then switch off motor to ensure spindle is in the 'park' position. Fit wiper arm ensuring that the centre of the blade is 65 mm above the top edge of the rear screen finisher.
  3. Fit and tighten wiper arm nut to 14 Nm.
  4. Fit nut cover.
