Wipers and washersRemove

Service Repair No. Linkage – 84.15.26
Service Repair No. Wheelbox – 84.15.28

Remove

  1. Remove the wiper arms, see Windscreen Wiper Arm and Blade.

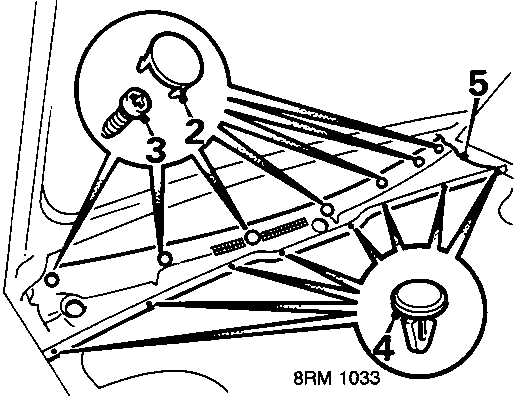

Diagram of plenum air intake assembly showing retaining screws, clips, and caps with callout numbers 2, 3, 4, 5
  1. Remove 7 caps from plenum air intake retaining screws.
  2. Remove 7 screws retaining plenum air intake.
  3. Remove 8 clips retaining plenum air intake.
  4. Remove the plenum air intake.

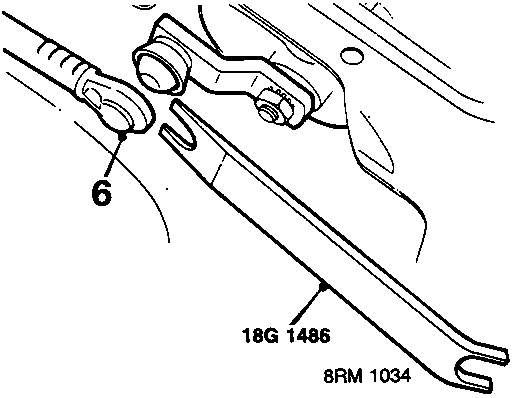

Diagram showing release of wiper linkage from motor arm using tool 18G 1486 with callout number 6
  1. Release wiper linkage from motor arm using tool 18G 1486.

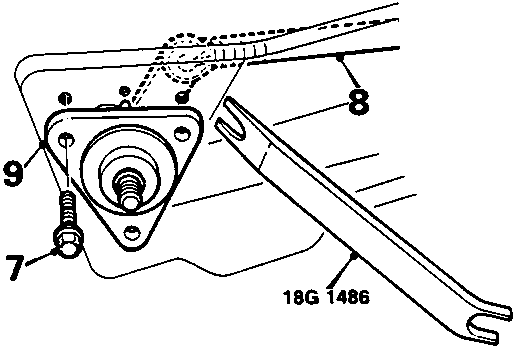

Diagram showing removal of R.H. wheelbox bolts and disconnecting rod using tool 18G 1486 with callout numbers 7, 8, 9
  1. Remove 3 bolts securing R.H. wheelbox to body.
  2. Disconnect rod from wheelbox arm using tool 18G 1486.
  3. Remove wheelbox.

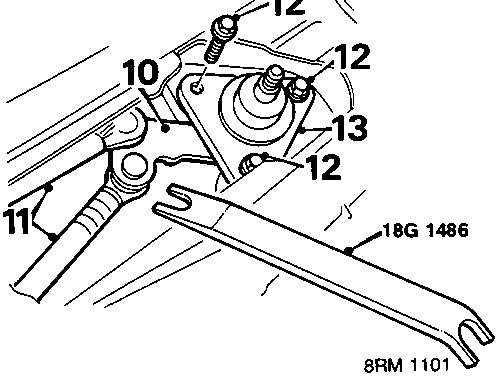

Diagram showing centre wheelbox removal with link rods and bolts, using tool 18G 1486, with callout numbers 10, 11, 12, 13
  1. Disconnect 2 link rods from centre wheelbox arm using tool 18G 1486.
  2. Remove 2 link rods.
  3. Remove 3 bolts securing centre wheelbox to body.
  4. Remove centre wheelbox.

Refit

  1. Position centre wheelbox to body, fit and tighten bolts securing wheelbox to 9 Nm.
  2. Position link rod and connect to centre wheelbox pivot.
  3. Position R.H. wheelbox.
  4. Connect link rod to R.H. wheelbox pivot.
  5. Position wheelbox to body, fit and tighten bolts securing wheelbox to 9 Nm.
  6. Connect link rod to wiper motor pivot arm.
  7. Refit plenum moulding and secure with 7 screws and 8 clips.
  8. Refit 7 caps to plenum air intake securing screws.
  9. Fit the wiper arms, see Windscreen Wiper Arm and Blade.
