Wipers and washersRefit

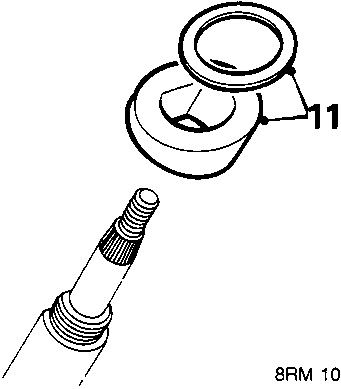

Diagram showing a wiper motor spindle with a seal and spacer, labeled 11.
  1. Remove spacer and seal from wiper motor spindle.

Refit

  1. Fit spacer and seal to wiper motor spindle.
  2. Fit 3 mounting rubbers to plate.
  3. Fit wiper motor to taildoor, fit and tighten 3 bolts to 9 Nm.
  4. Connect multiplug.
  5. Fit sealing rubber, locating washer and retainer, tighten nut securing wiper motor to taildoor.
  6. Fit wiper motor spindle cover.
  7. Fit taildoor trim pad, see BODY – Repairs.
  8. Fit wiper arm, see Wiper Arm and Blade – Rear Screen.

WIPER MOTOR – REAR SCREEN – COUPE

Service Repair No. 84.35.12

Remove

  1. Remove wiper arm, see Wiper Arm and Blade – Rear Screen.
  2. Prise cover from wiper motor spindle.
  3. Remove rear shelf trim, see BODY – Repairs.

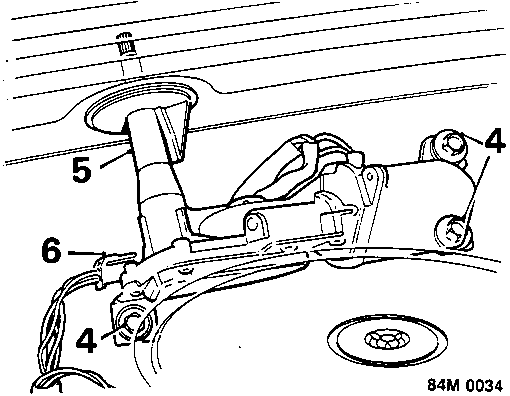

Diagram of the rear wiper motor assembly mounted in the taildoor, with callouts 4, 5, and 6.
  1. Remove 3 bolts securing wiper motor and collect washers.
  2. Disengage motor from rear screen location.
  3. Disconnect multiplug from motor.
  4. Remove motor.

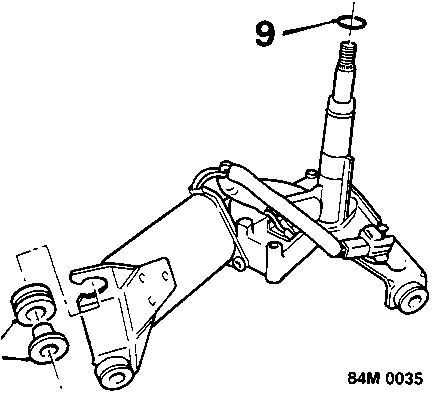

Diagram of the removed wiper motor bracket showing rubber bushes (8) and an 'O' ring (9).
  1. Remove rubber bushes and steel inserts from wiper motor bracket.
  2. Remove 'O' ring from motor.

Refit

  1. Fit 'O' ring to motor.
  2. Fit rubber bushes and steel inserts to motor bracket.
  3. Position wiper motor and connect multiplug.
  4. Engage motor in rear screen location, ensuring that 'O' ring is correctly located.
  5. Fit mounting bolts and washers; tighten bolts to 9 Nm.
  6. Fit wiper arm, see Wiper Arm and Blade – Rear Screen.
