Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual25 · Wipers and washers
25 · Electrical

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
Wipers and washersRemove

Service Repair No. Reservoir – 84.10.01
Service Repair No. Pump – 84.10.21

Remove

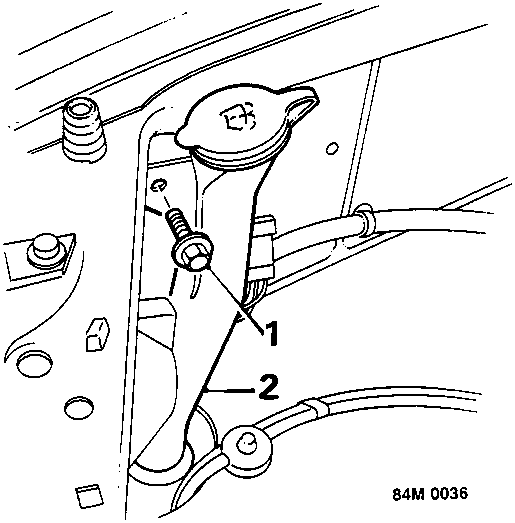

Diagram showing reservoir filler neck and screw securing it to wing valance
  1. Remove the screw securing the reservoir filler neck to the wing valance.
  2. Remove the filler neck.
  3. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

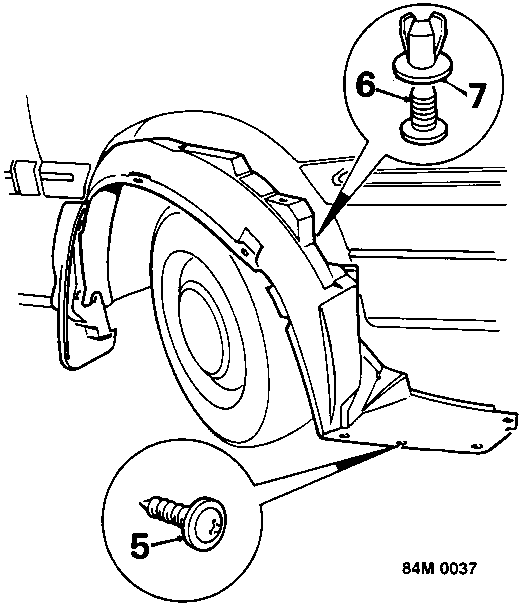

Diagram showing front wheel arch liner, scrivets, and screws securing it to bumper and wheel arch
  1. Remove 4 screws securing front wheel arch liner to front bumper.
  2. Remove 2 screws from scrivets securing wheel arch liner to wheel arch.
  3. Remove scrivets.

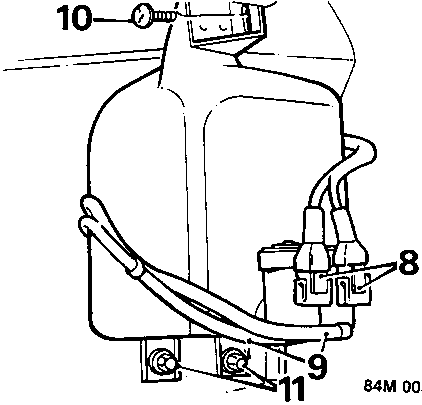

Diagram showing washer reservoir, multiplug connector, washer tube connection, and mounting screws
  1. Disconnect multiplug from pump.
  2. Disconnect washer tube from pump.
  3. Remove screw securing reservoir to upper support bracket.
  4. Remove 2 screws securing reservoir to wing valance.
  5. Remove reservoir.

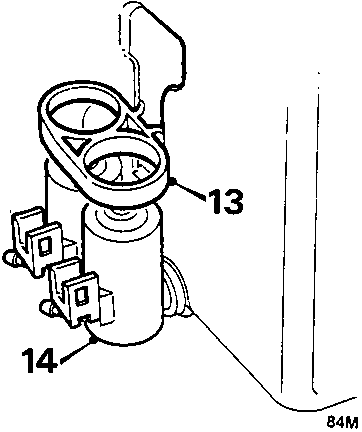

Diagram showing washer pump clip and pumps removed from reservoir seal
  1. Slide washer pump clip upwards.
  2. Remove washer pumps from reservoir seal.

Refit

  1. Push washer pumps into reservoir seal.
  2. Slide washer pump clip down and secure pump.
  3. Position reservoir to wing valance and connect 2 washer tubes and 2 multiplugs to pumps.
  4. Fit, but do not tighten, 2 screws securing reservoir to wing valance.
  5. Fit and tighten upper support bracket screw. Tighten screws to wing valance.
  6. Position wheel arch liner and secure with 4 screws and 2 scrivets.
  7. Fit reservoir filler neck and tighten filler neck screw.
  8. Top up reservoir.
  9. Fit road wheel and tighten nuts to 100 Nm.
  10. Remove stand(s) and lower vehicle.
