Leon Mk1
Note
|

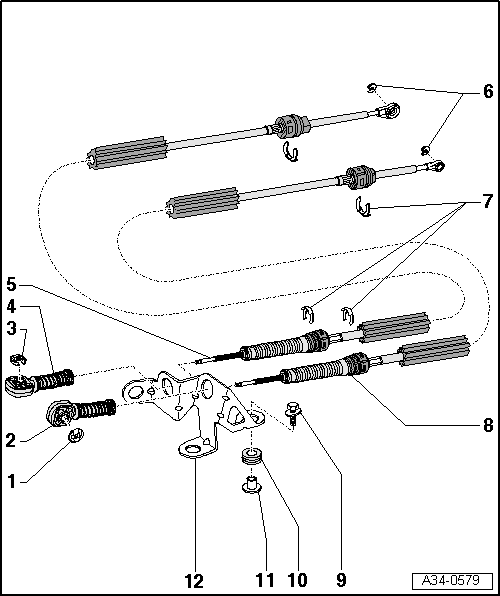

1 - | Retainer washer |
2 - | Securing element of control cable |
q | For selection control cable on idler lever |
q | Unlock to adjust gear change mechanism → Chapter |
3 - | Retainer washer |
4 - | Securing element of control cable |
q | For gear control cable on selector lever |
q | Unlock to adjust gear change mechanism → Chapter |
5 - | Gear selector cable |
q | removing and fitting → Chapter |
q | Adjust convergence → Chapter |
6 - | Lock washers |
7 - | Retaining clips |
8 - | Selection control cable |
q | removing and fitting → Chapter |
q | Adjust convergence → Chapter |
9 - | 25 Nm |
10 - | Grommet |
11 - | Bush |
12 - | Spring retainer |
q | May be plastic or metallic |
