Power transmissionGearbox housing

Gearbox casing: repairing

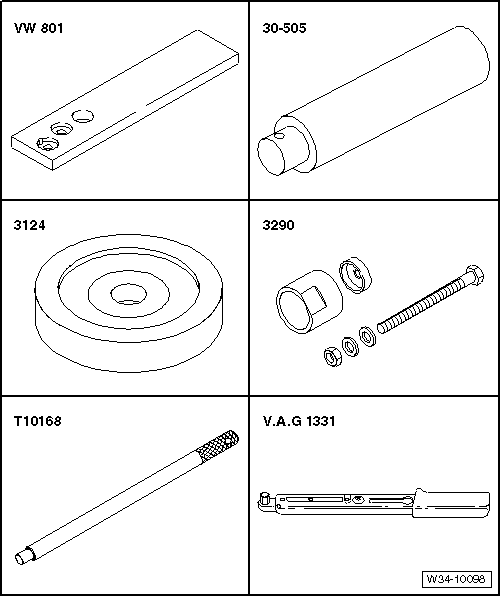

Special tools and workshop equipment required

t	Support plate -VW 801-

t	Press tool -30-505-

t	Thrust piece -3124-

t	Assembly tool -3290-

t	Drift -T10168-

t	Torque wrench -V.A.G 1331-

t	-1-Interior extractor -Kukko 21/3-

t	Thread adapter from counter support -Kukko 22/1-

t	-4-Support bracket -Kukko 22/2-

t	Sealant -AMV 188 200 03-

t	For other special tools, please refer to descriptions for repairing input shaft(s).

Remove the bearing bush of the selector shaft –  Use thread adapter -arrow- from counter support -Kukko 22/1-. –  Fix the spindle of the assembly tool -3290- and turn the nut -B-. A -  Internal puller, 14.5…18.5 mm, e.g. -Kukko 21/2-

Driving in selector shaft bearing bush -A- to stop of tool.

Pulling out selector rod mounting bush -C- A -  e. g. Counter support -Kukko 22/2- B -  e.g. internal puller -Kukko 21/3- 18.5…23.5 mm

Driving in selector shaft mounting bush to stop

01 Transmission
