Transporting gearbox

Make

SEAT

Model

Leon Mk1

Section

6-speed manual gearbox 0A6 › Gearbox mechanics,operation, construction,diff. › Transporting gearbox

Power transmissionTransporting gearbox

Transporting gearbox Special tools and workshop equipment required

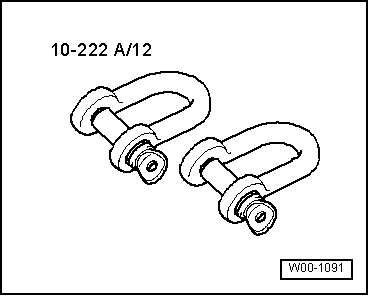

t  Shackle -10-222A/12-

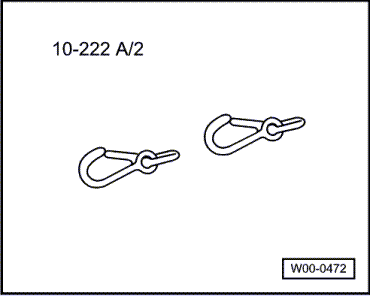

t  Hook -10-222A/2-

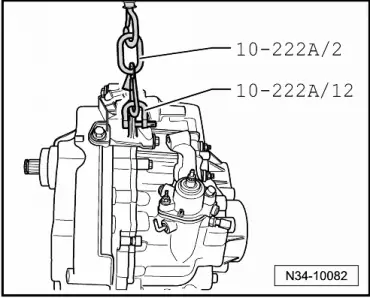

Shackle -3282- may be used in conjunction with hook -10-222A/12- and workshop crane to transport manual gearbox and to set up gearbox support -10-222A/2-. –  Secure shackle -10-222A/12- to gearbox housing. –  Lift gearbox using workshop crane and hook -10-222A/2-.

01 Transmission

The same page in: Leon Mk2.
