Control measurement
Control measurement

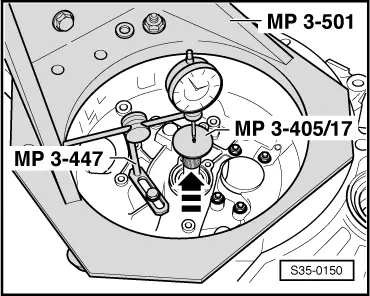

–  Insert measuring device and dial gauge.
–  Turn the drive shaft a number of times to ensure the tapered-roller bearing sets.
–  Press drive shaft in the direction of the arrow.
–  The bearing clearance must be min. 0.01 ... max. 0.09 mm.
  Note
If no bearing clearance can be measured, however the input shaft has a tangible clearance fluctuation and can easily be turned, then the setting is also OK.
  S35-0150
