Clutch, control › Clutch control › Summary of components - Hydraulics
Power transmissionSummary of components - Hydraulics

Summary of components - Hydraulics
Summary of components - Hydraulics – Skoda Octavia Mk2
1 - Brake fluid reservoir
q   test tightness → Chapter
2 - Spring strap clamp
q   is not installed on all vehicles
3 - Tubing
q   out of rubber
q   as of 12.05 on certain vehicles out of plastic → Fig.
q   if the return hose is made out of plastic, do not use hose clamp -MP7–602-
q   test tightness → Chapter
4 - Master cylinder
q   removing and installing (Octavia II) → Chapter
q   removing and installing (Superb II) → Chapter
q   removing and installing (Yeti) → Chapter
q   test tightness → Chapter
5 - Clamp
q   to remove and install the tube-hose line pull out retaining clip up to the stop
6 - Support
q   removing and installing (Octavia II) → Chapter
q   removing and installing (Superb II) → Chapter
q   removing and installing (Yeti) → Chapter
7 - Clutch pedal
q   removing and installing (Octavia II) → Chapter
q   removing and installing (Superb II) → Chapter
q   removing and installing (Yeti) → Chapter
8 - 20 Nm
q   3 pieces
q   Mounting bracket on the body
q   always replace → Electronic Catalogue of Original Parts
9 - O-ring
q   pull onto line connection
q   moisten with brake fluid to install
q   do not interchange, the O-rings Pos. 9 and Pos. 12 are different → Fig.
q   Assignment → Electronic Catalogue of Original Parts
q   always replace → Electronic Catalogue of Original Parts
q   test tightness → Chapter
10 - Tube-hose line
q   Assignment → Electronic Catalogue of Original Parts
q   Remove battery and battery tray for removing → Electrical System; Rep. gr.27
q   test tightness → Chapter
11 - Support
q   Mounted at the structure
q   for tube-hose line pos. 10
12 - O-ring
q   pull onto line connection
q   moisten with brake fluid before installing
q   do not interchange, the O-rings Pos. 9 and Pos. 12 are different → Fig.
q   Assignment → Electronic Catalogue of Original Parts
q   always replace → Electronic Catalogue of Original Parts
q   test tightness → Chapter
13 - Clamp
q   to remove and install the tube-hose line pull out retaining clip up to the stop
14 - Slave cylinder
q   removing and installing (Octavia II) → Chapter
q   removing and installing (Superb II) → Chapter
q   removing and installing (Yeti) → Chapter
q   test tightness → Chapter
15 - 20 Nm
16 - Vent valve
q   pay attention to different versions, assign via the → Electronic Catalogue of Original Parts
q   Bleed the clutch control → Chapter
q   test tightness → Chapter
17 - Dust cap
18 - Gearbox
19 - Support
20 - 20 Nm

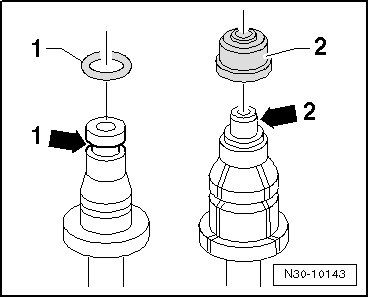

Gasket rings / O-rings for tube-hose lines and/or plastic line
t  -1- Line connection with circular slot -arrow 1-
t  -2- Line connection with collar -arrow 2-
  N30-10143
as of 12.05 on certain vehicles plastic return hose -1-
t  Gaskets -2- must be present on the return hose.
t  Do not use hose clamp -MP7–602-
  N30-10128
