Skoda Octavia Mk204 · Power transmission
04 · Transmission

Install

Make
Skoda
Model
Octavia Mk2
Section
Shift mechanism › Removing and installing shift cable and selector cable › Install
Power transmissionInstall
Install
Installation is performed in the reverse order, pay attention to the following points:
Vehicles up to 10.06

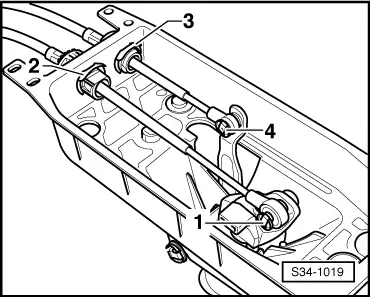

–  Attach shift cable and selector cable to shift housing with circlips -2 and 3-.
–  Fasten shift cable and selector cable onto shift lever and selector lever into shift housing with lock washers -1 and 4-.
Vehicles as of 11.06
  S34-1019
–  Attach shift cable and selector cable to shift housing with circlips -2 and 3-.
–  Press shift cable and selector cable onto shift lever and selector lever into shift housing (lock washers -1 and 4- are no longer available).
Continued for all vehicles
  S34-1019

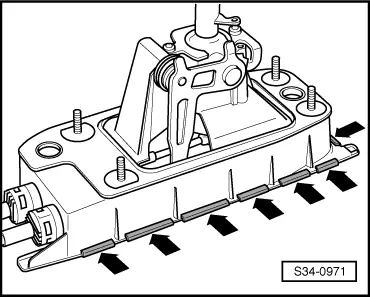

–  Install gasket and attach cover for shift mechanism by bending up the tabs -arrows-.
–  Install gearshift mechanism (Octavia II) → Chapter.
–  Install gearshift mechanism (Superb II) → Chapter
–  Install gearshift mechanism (Yeti) → Chapter
–  Setting the shift mechanism → Chapter.
  S34-0971
