146 bodyworkFront heelboard
  • Fold the rear seat back.
  • Partially remove the luggage compartment floor trim.

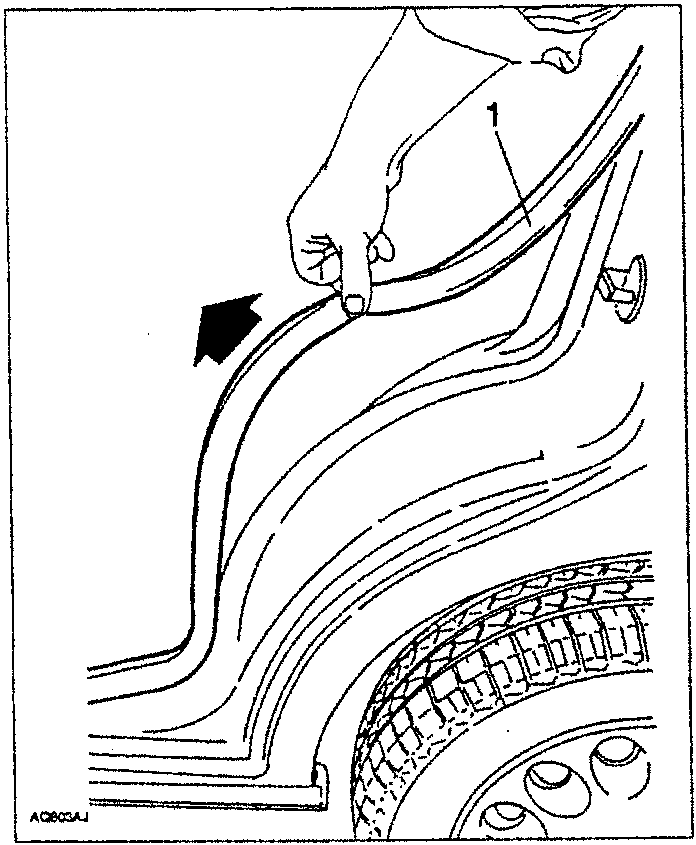

  1. Partially remove the door seal.
Illustration showing hands pulling a door seal away from the car body, with an arrow indicating the direction of removal.
  1. Remove the seat back fastening screw.

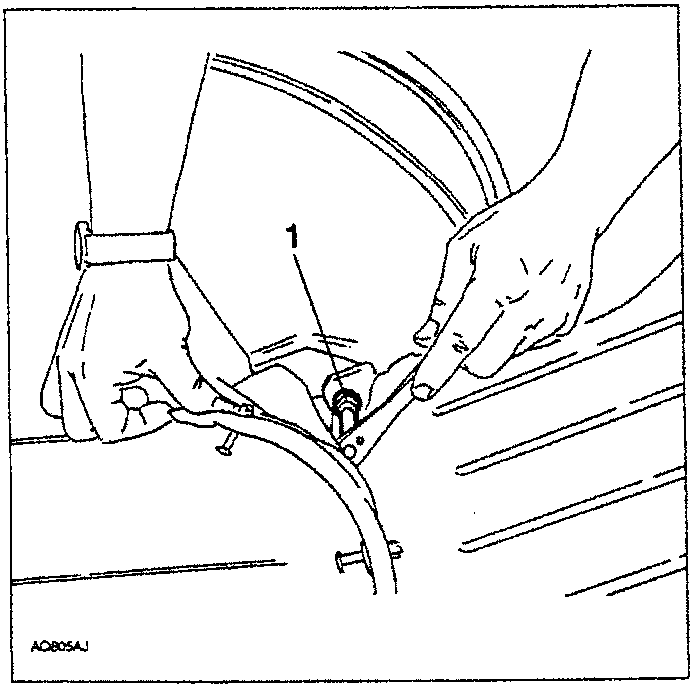

Illustration showing hands using a tool to remove screws from a wheel arch liner.

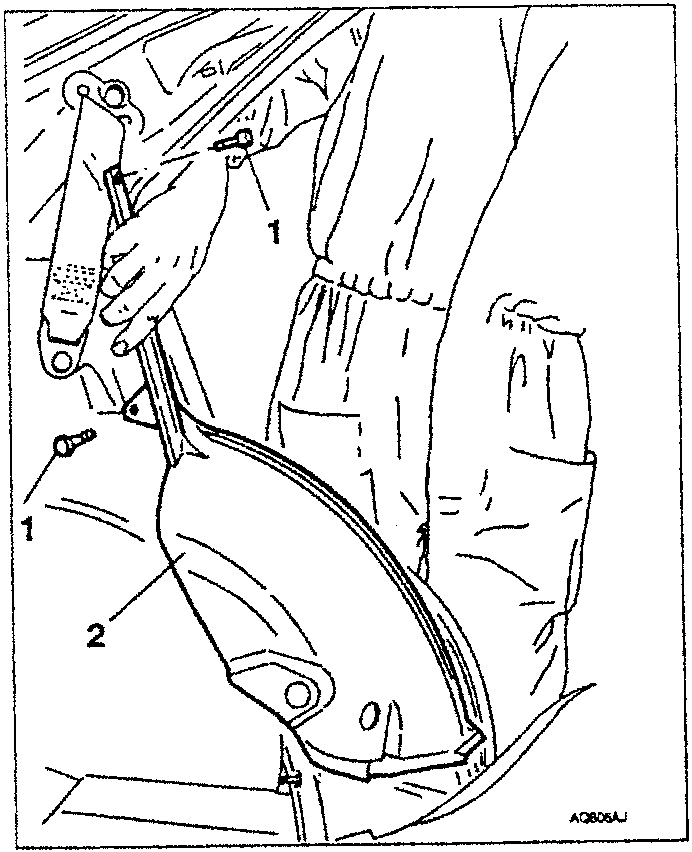

  1. Slacken and remove the upper and side screws fastening the wheel arch liner.
  2. Remove the wheel arch liner.

FRONT HEELBOARD

REMOVAL/REFITTING

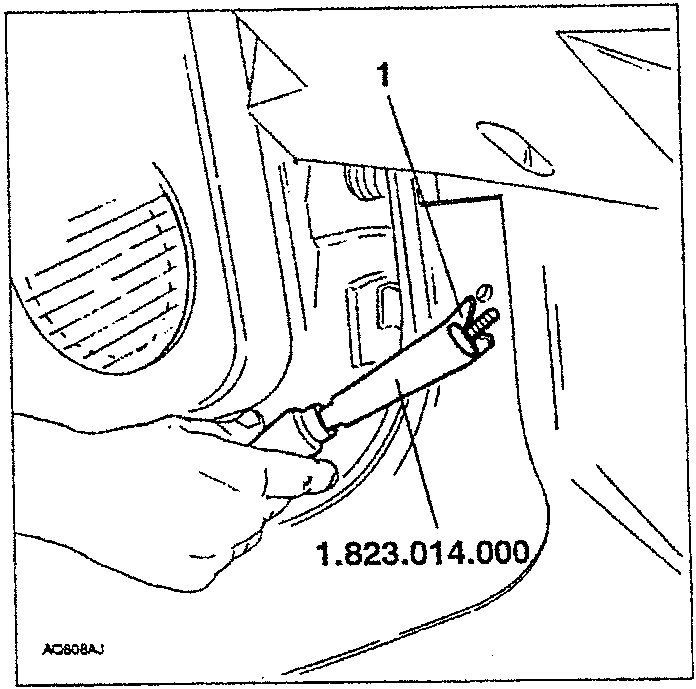

  1. Using tool 1.823.014.000, remove the front fastening cap.
Illustrates removal of fuel filter on vehicle
Illustration showing a hand using tool 1.823.014.000 to remove a front heelboard fastening cap.
  1. Slacken the front heelboard rear fastening screw.
  2. Using tool 1.823.013.000, remove the front heelboard.
