REAR HEELBOARD

REMOVAL/REFITTING

  • Fold the rear seat.
  1. Slacken and remove the three heelboard fastening screws.

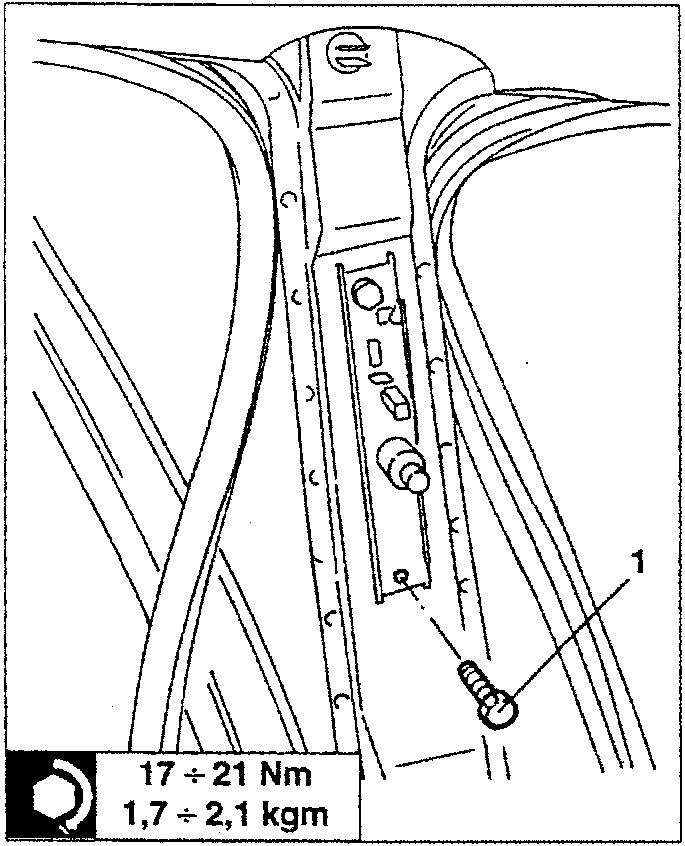

Rear heelboard with screw and torque specification

17 ÷ 21 Nm
1.7 ÷ 2.1 kgm

  1. Using tool 1.823.014.000, prise the rear heelboard and remove it.

WHEELHOUSE TRIM

REMOVAL/REFITTING

  • Remove the rear heelboard (see specific paragraph)
  1. Remove the plastic cap.
  2. Remove the seat belt lower lockscrew and free the belt.

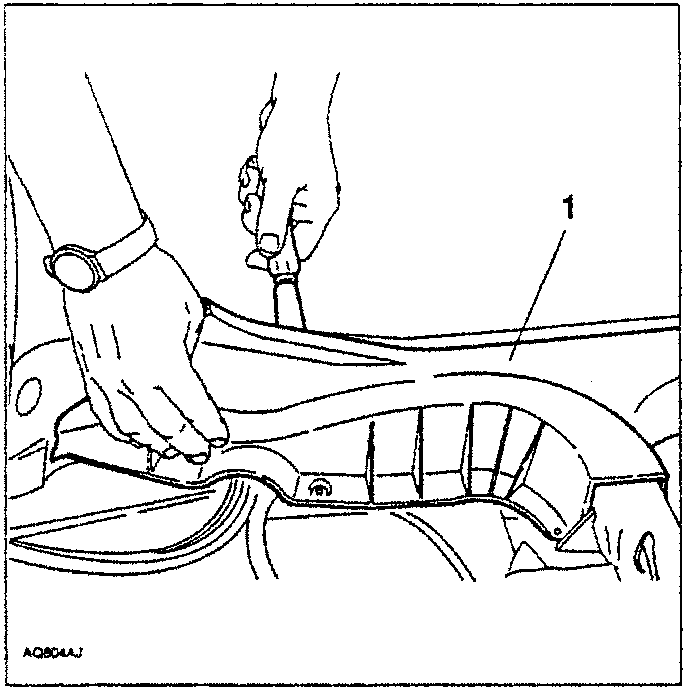

Hand using tool to remove wheelhouse trim

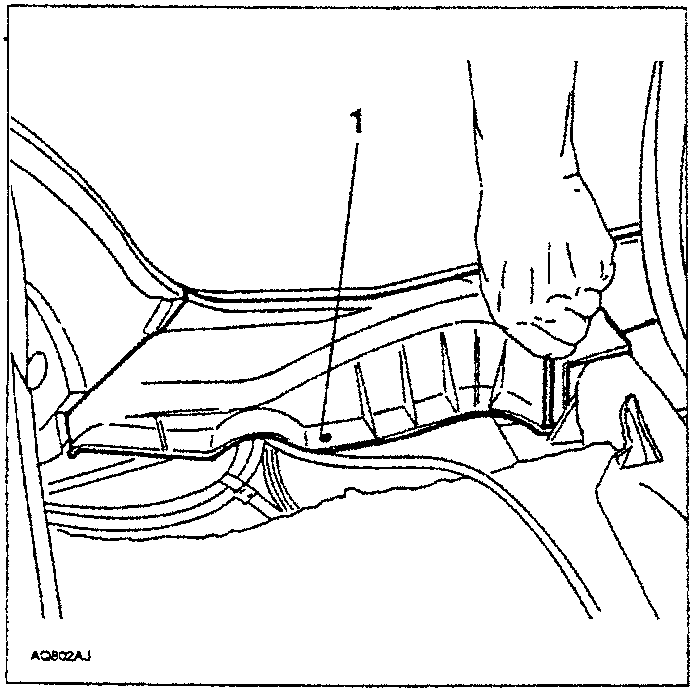

Hand prising wheelhouse trim

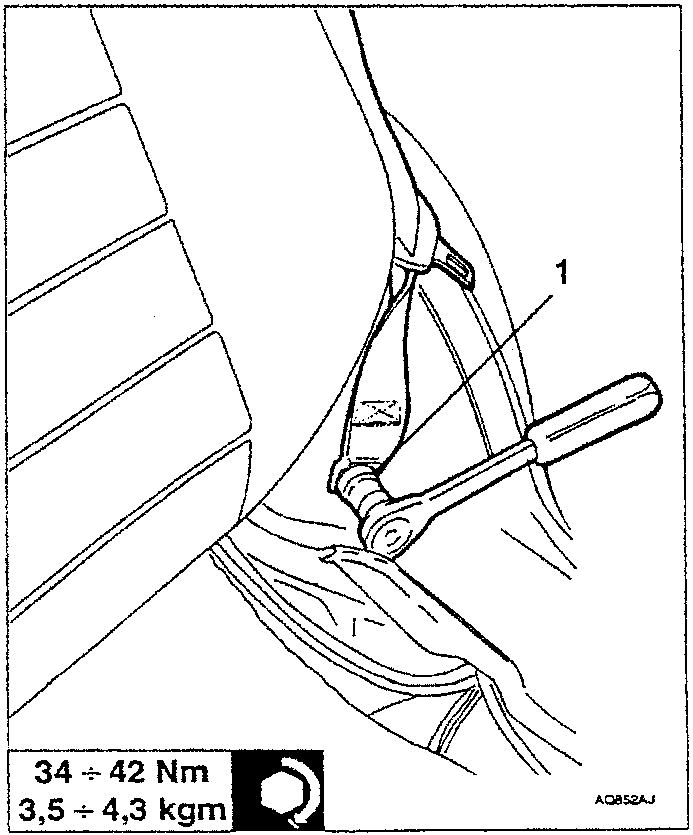

Wrench tightening wheelhouse trim screw

34 ÷ 42 Nm
3,5 ÷ 4,3 kgm
