146 bodyworkFront safety belts · page 1 of 2

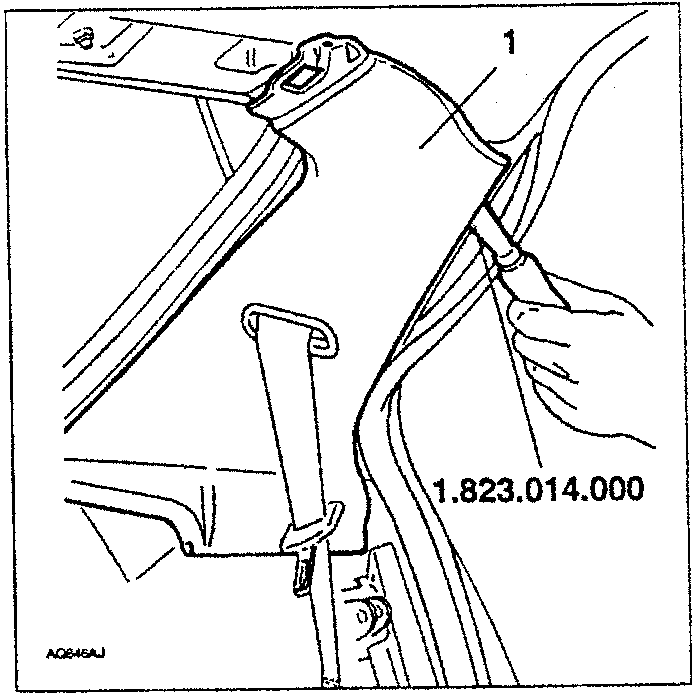

  1. Using tool 1.823.014.000 release the pillar cover bracket and remove it withdrawing the safety belt.
Diagram showing hand using tool 1.823.014.000 to release a pillar cover bracket near a safety belt.

FRONT SAFETY BELTS

REMOVAL/REFITTING

The vehicle is fitted with safety belts with pretensioner: ALWAYS take extreme care and CLOSELY adhere to safety regulations when working on the belts or near to them (see specific paragraph).

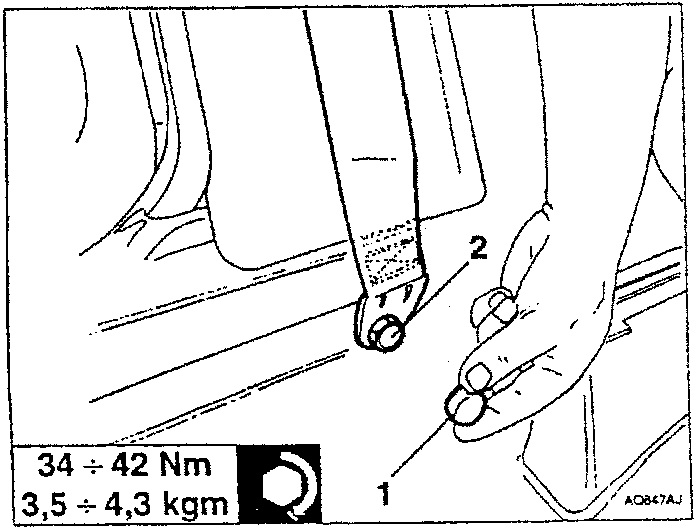

  1. Remove the plastic cap.
  2. Remove the lower safety belt lockscrew and free the belt.
Diagram showing hand removing a lower safety belt lockscrew with tool 1.823.014.000, with torque values 34 ÷ 42 Nm and 3,5 ÷ 4,3 kgm printed below.

34 ÷ 42 Nm
3,5 ÷ 4,3 kgm

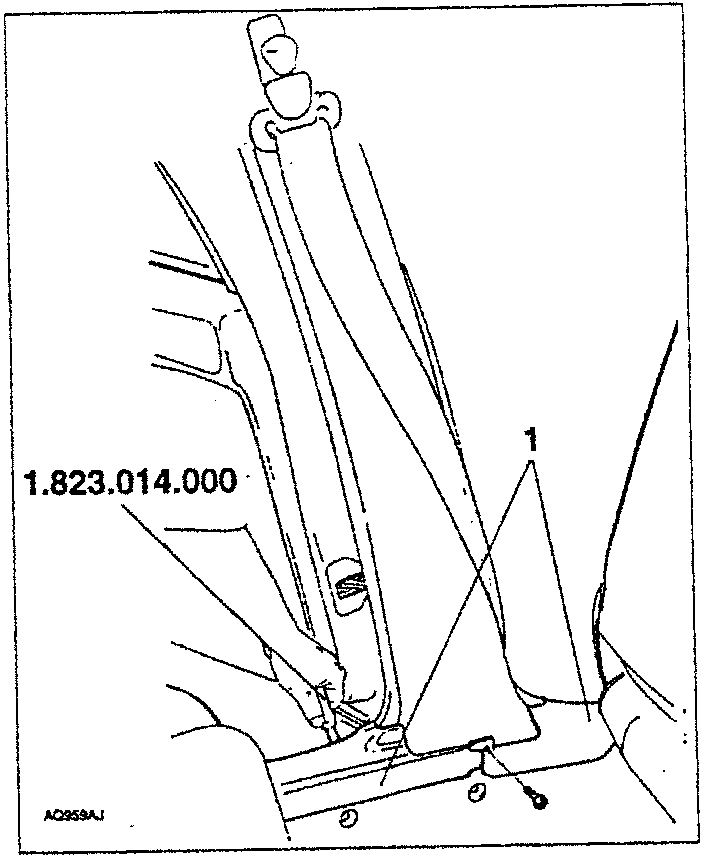

  1. Remove the two “heel boards” (see specific paragraph).
Diagram showing tool 1.823.014.000 being used to remove a heel board near a seatbelt anchor point.

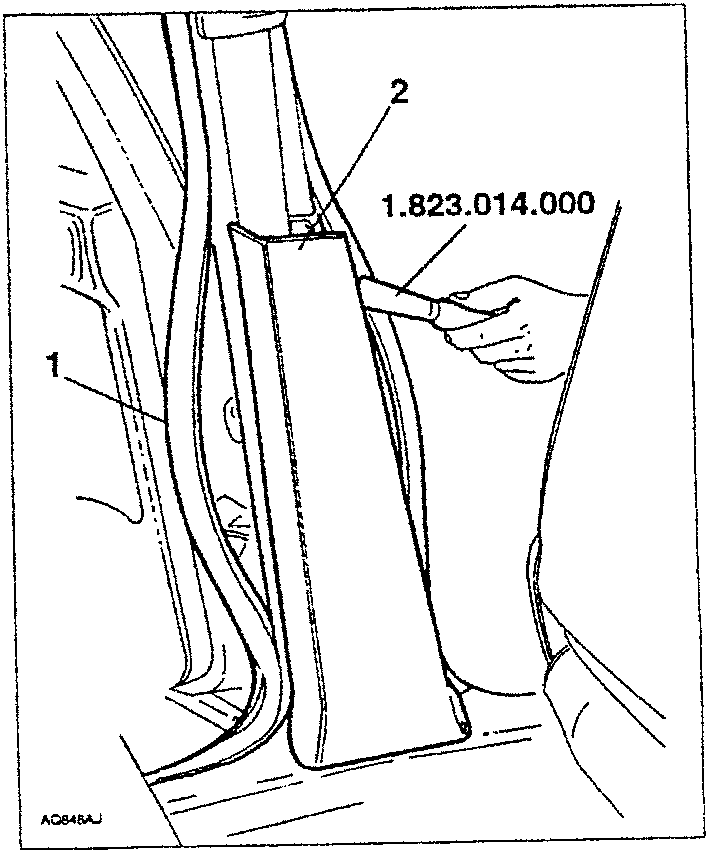

  1. Carefully remove part of the door seal.
  2. Using tool 1.823.014.000 prise the pillar cover towards the inside of the car and remove it.
Diagram showing hand using tool 1.823.014.000 to prise a pillar cover towards the inside of the car.
