146 bodyworkInternal trim

• Move the rear seat cushion forwards

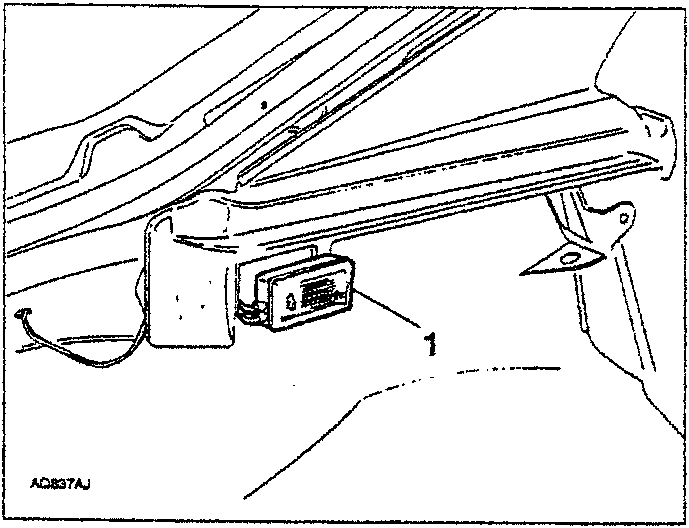

1. Take the courtesy light out of its housing, then disconnect the electrical coonnections and remove it.

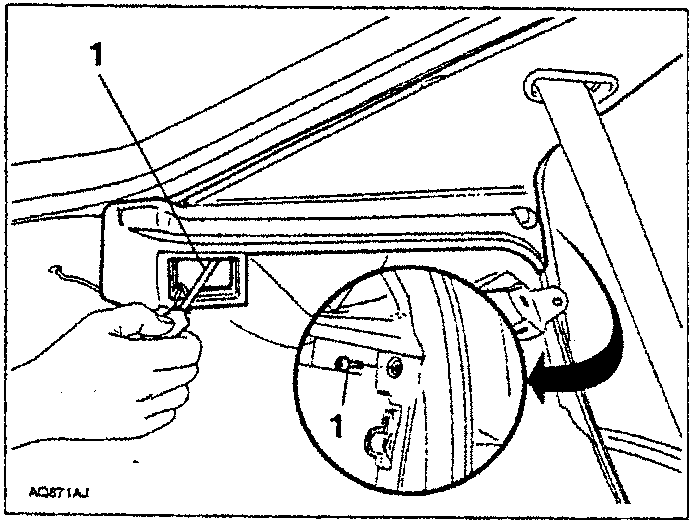

1. Slacken and remove the two lower screws and the third side screw fastening the pillar cover side bracket.

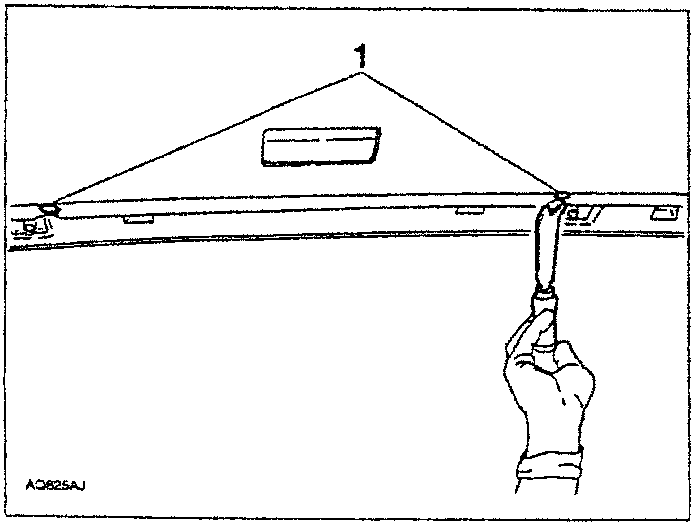

1. Using tool 1.823.014.000, release the rear roof panel trim from the plastic nails and remove it.

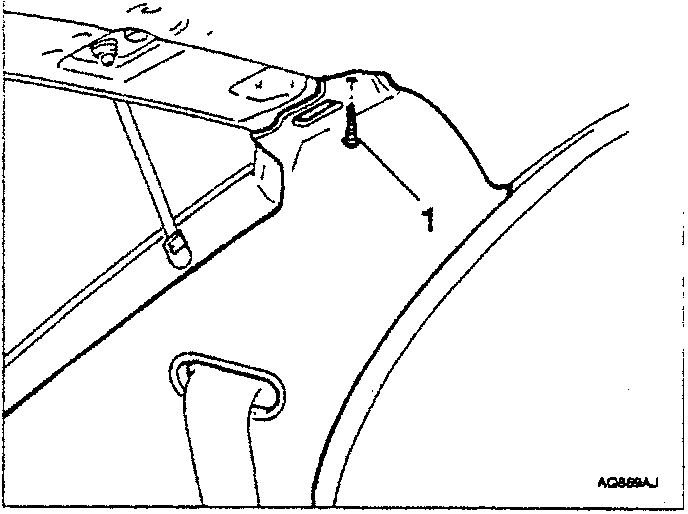

1. Slacken and remove the upper screws fastening the pillar cover bracket.

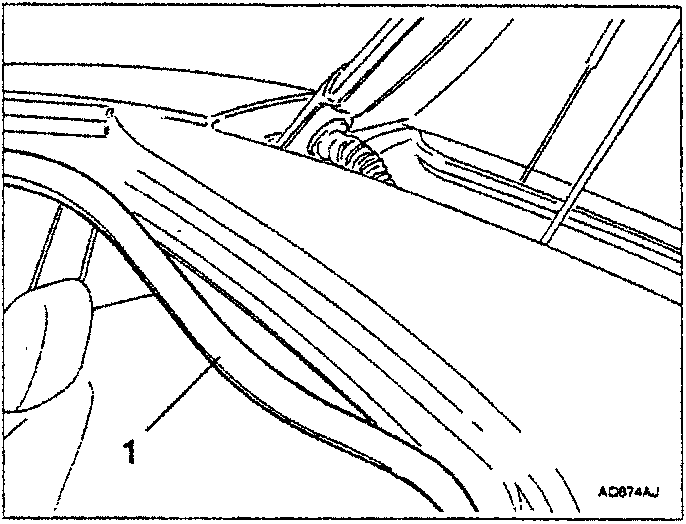

1. Partially remove the door seal.

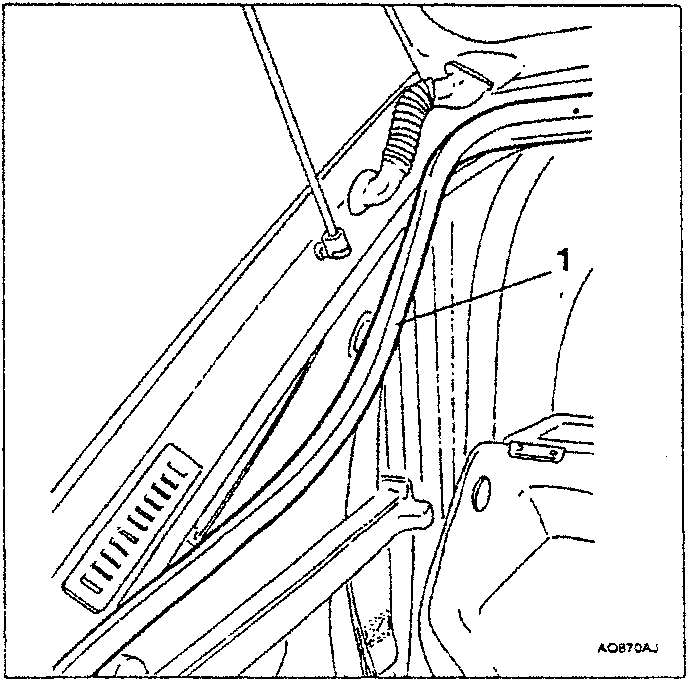

1. Partially remove the tailgate seal.
