146 bodyworkRear side safety belts

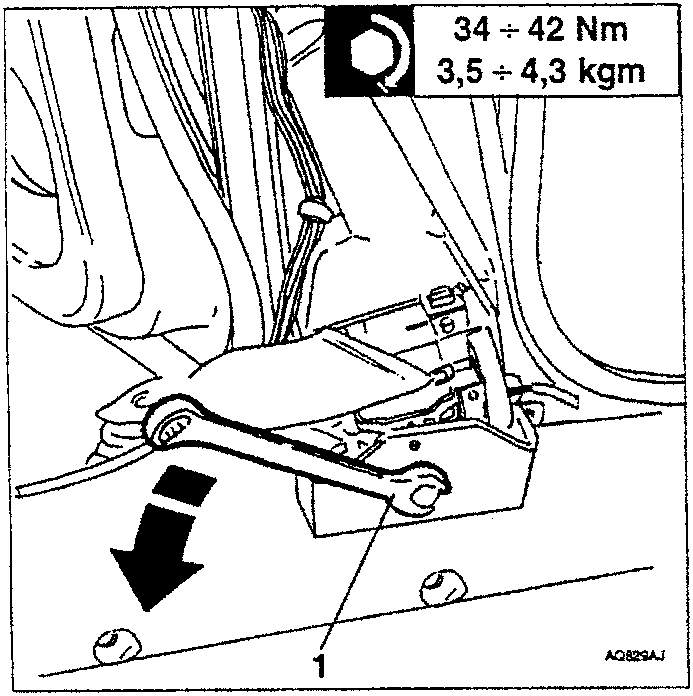

  1. Slacken the pretensioner anchor screw.
Diagram showing a wrench loosening a bolt on a pretensioner anchor, with torque specification 34 ÷ 42 Nm and 3,5 ÷ 4,3 kgm

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

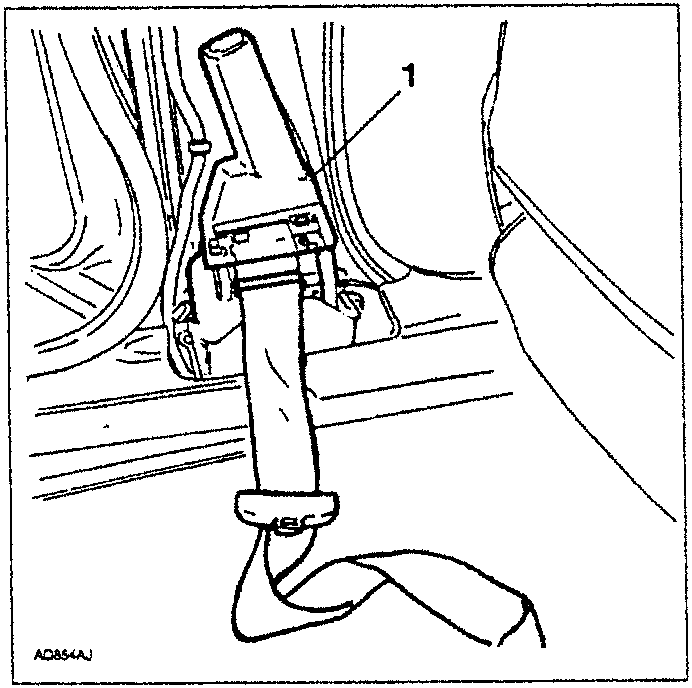

  1. Remove the pretensioner.
Diagram showing the pretensioner being removed from its mounting point, with part number 1 indicated

REAR SIDE SAFETY BELTS

REMOVAL/REFITTING

  • Remove the pillar cover side bracket (see specific paragraph)
  1. Slacken and remove the two screws fastening the safety belt and remove it.
Diagram showing a bolt being loosened on a lower pillar cover, with torque specification 34 ÷ 42 Nm and 3,5 ÷ 4,3 kgm

LOWER PILLAR COVER

REMOVAL/REFITTING

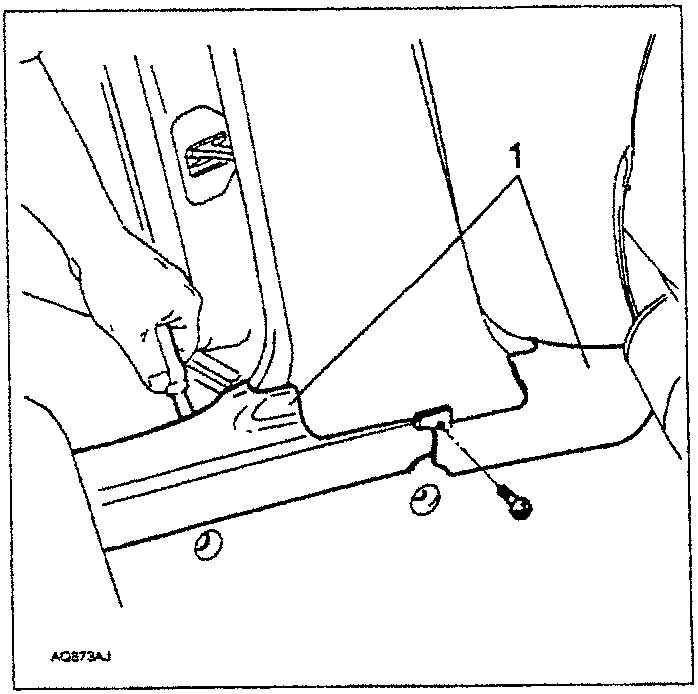

  1. Prise and remove the two “heel boards” (see specific paragraph).
Diagram showing a hand using a tool to prise a pillar cover away from the car body, with part number 1 indicated
  1. Carefully partially remove the door seals.
  2. Using tool 1.823.014.000, prise the pillar cover towards the inside of the car and remove it.
