Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)04 · 146 bodywork
04 · Body & interior

Front seat bel height adjustment device

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Internal trim › Front seat bel height adjustment device
146 bodyworkFront seat bel height adjustment device

The operator must wear protective items (polyethylene gloves, safety goggles, ear muffs), never go near with the face and keep as far away as possible when carrying out the operation.

  1. Remove the upper trim cap fastened to the height adjustment device.
  2. Slacken the nut, then remove it.

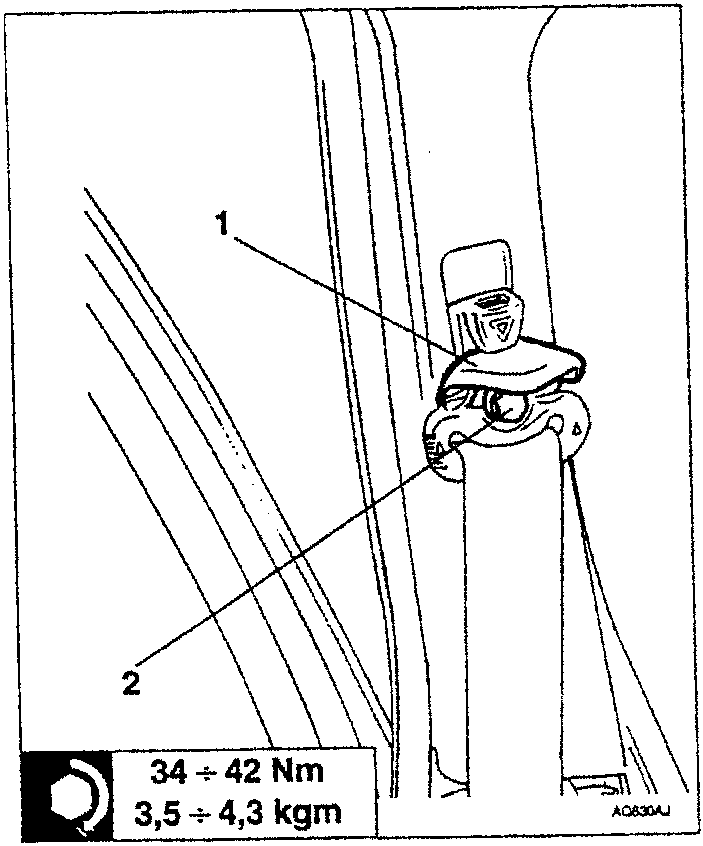

Front seat belt upper anchorage nut on the height adjustment device

34 ÷ 42 Nm
3,5 ÷ 4,3 kgm

  1. Remove the plastic trim cap.

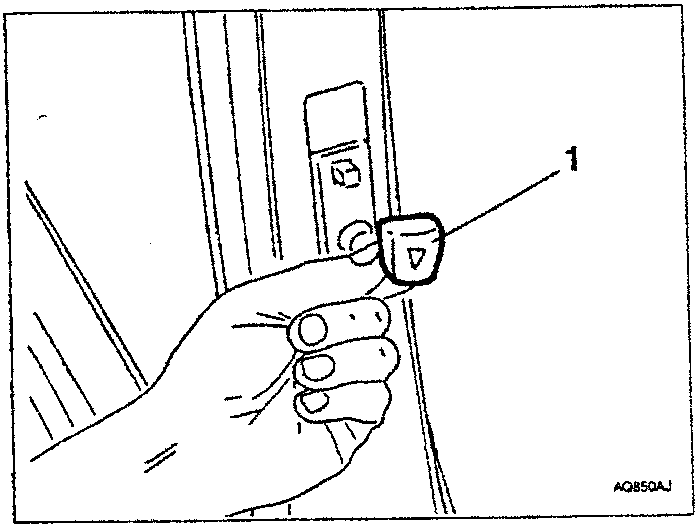

Removing the plastic trim cap
  1. Carefully partially remove the door seals.
  2. Slacken and remove the lower screw fastening the pillar cover.

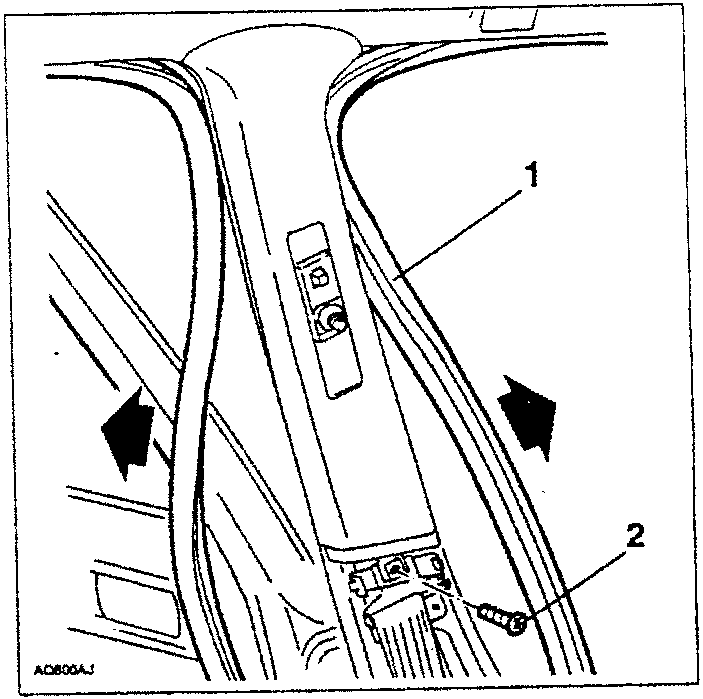

Pillar cover lower fastening screw
  1. Using tool 1.823.014.000, prise the upper pillar cover and remove it complete with the sliding plate.

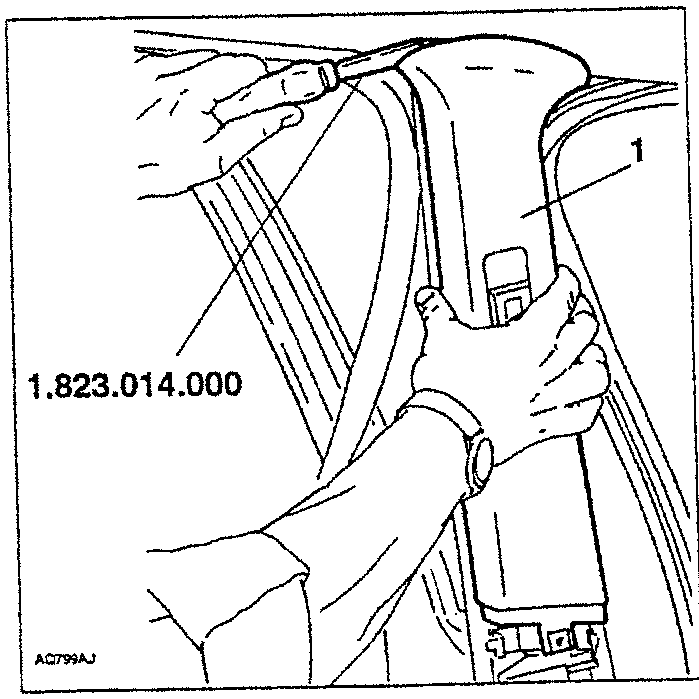

Prising off the upper pillar cover with tool 1.823.014.000

FRONT SEAT BEL HEIGHT ADJUSTMENT DEVICE

REMOVAL/REFITTING

- Remove the upper pillar cover (see spec. par.)

  1. Slacken the two fastening screws and remove the safety belt height adjustment device.
