1.9 JTD engine (1910)Pressure pump · page 2 of 5

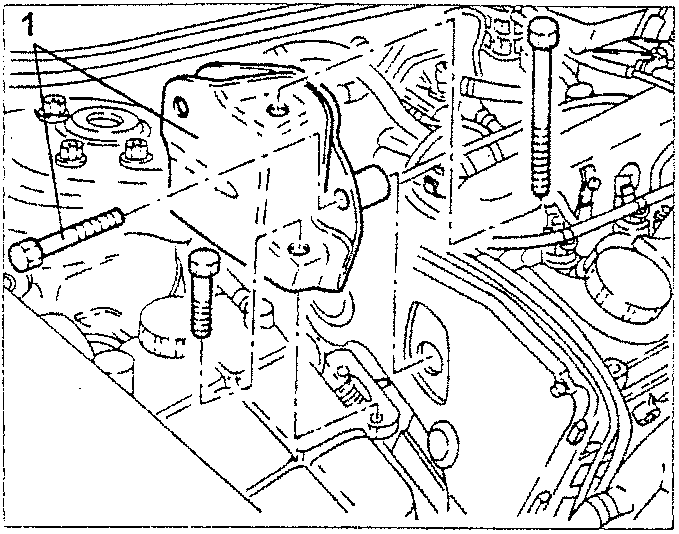

  1. Slacken the fastening screws and remove the reaction rod engine side support bracket.
Illustration showing the reaction rod engine side support bracket being removed
  • Remove the right front wheel and its dust guard.
  • Remove the right front wheel arch.

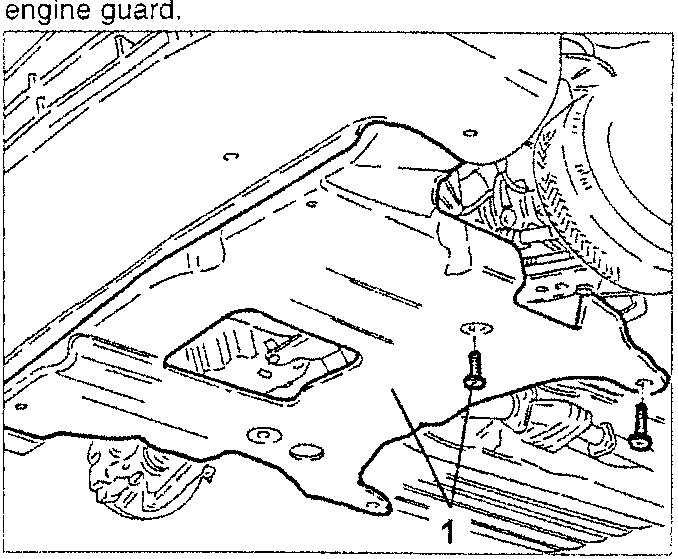

  1. Slacken the fastenings and remove the under engine guard.
Illustration showing the under engine guard being removed

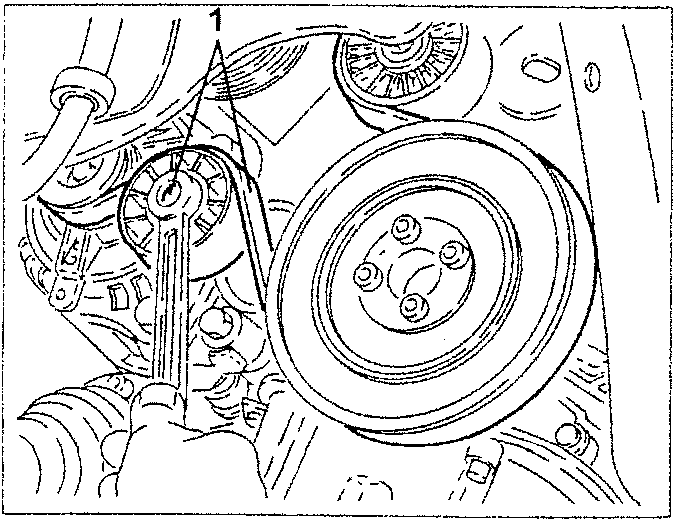

  1. Proceeding as illustrated on the tensioner, slacken the tension of the engine components belt and remove it.
Illustration showing the engine components belt being removed

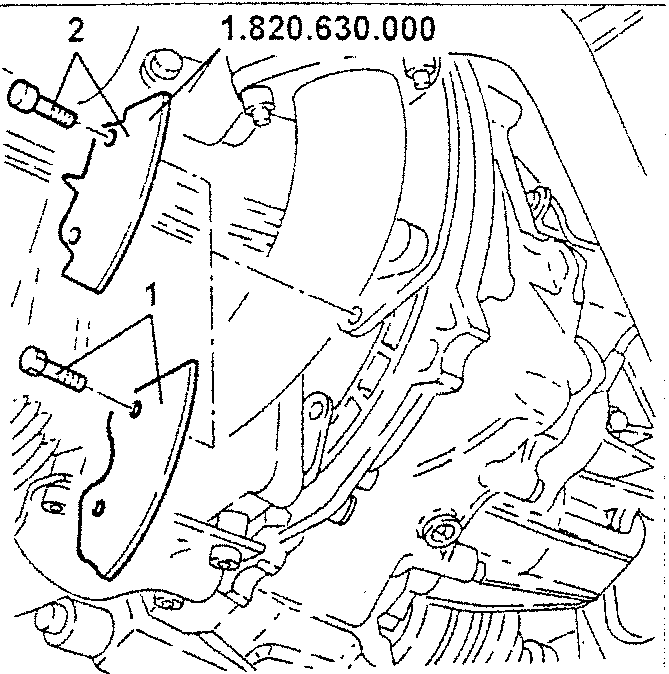

  1. Slacken the screws and remove the lower flywheel guard.
Illustration showing the lower flywheel guard being removed with tool no. 1.820.630.000
  1. Install flywheel stopper tool no. 1.820.630.000.

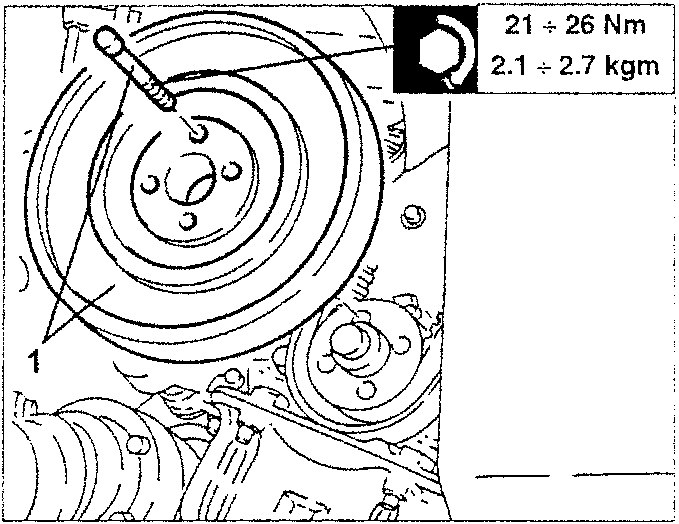

  2. Slacken the fastening screws and remove the crankshaft pulley.
Illustration showing the crankshaft pulley being removed with torque specification

21 ÷ 26 Nm
2.1 ÷ 2.7 kgm
