Pressure pump (page 3 of 5)

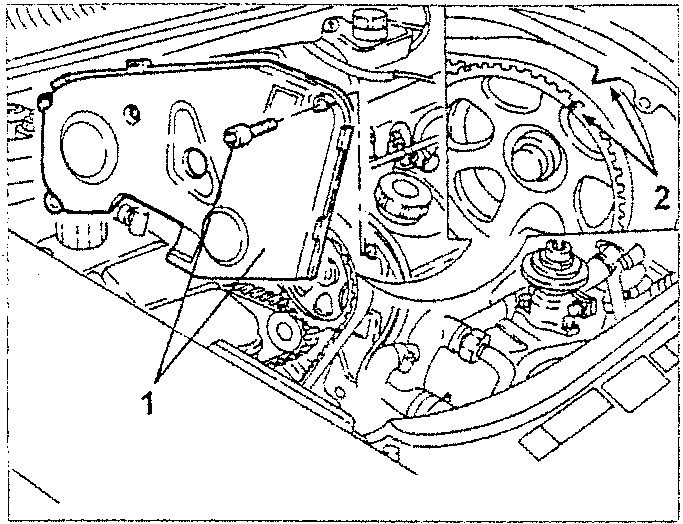

1. Slacken the fastening screws and remove the timing gear belt upper guard.
2. Working on the driving pulley screw, turn the crankshaft until the timing references are aligned (1st cyl. at T.D.C.).

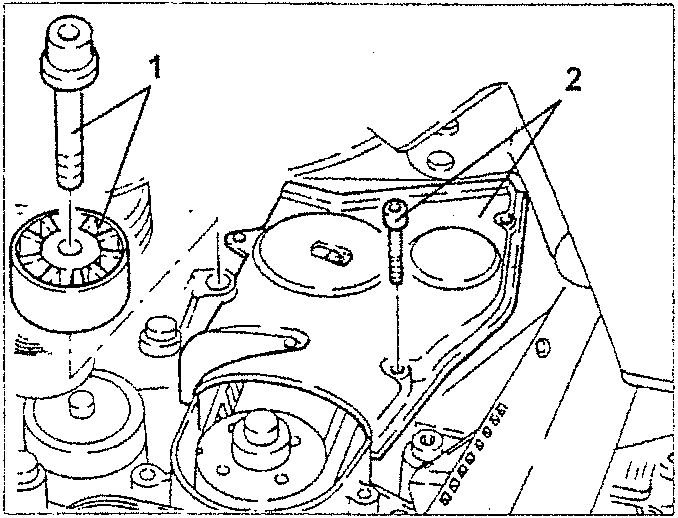

1. fixed tensioner of the engine components belt
2. timing gear belt lower guard

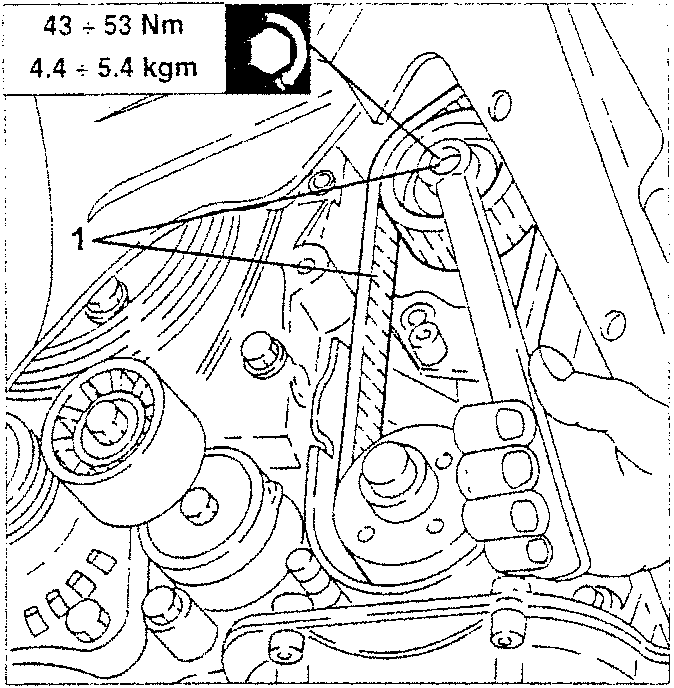

1. Slacken the nut fastening timing gear belt tensioner, then remove the timing gear belt.

F3 43 ÷ 53 Nm
4.4 ÷ 5.4 kgm

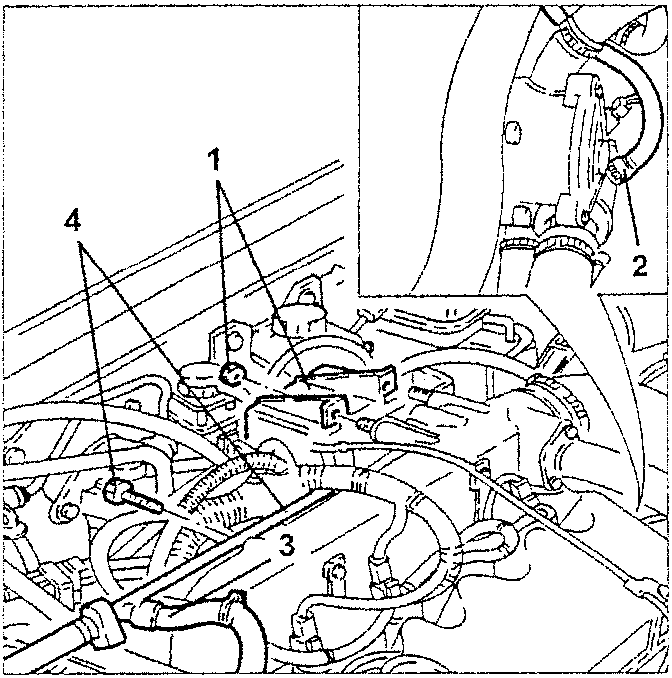

1. Slacken the fastening nuts and move the oil vapour separator.
2. Disconnect the coolant fluid return pipe to the header tank from the thermostat.
3. Disconnect the cylinder head coolant outlet pipe from the header tank coolant return pipe.
4. Slacken the fastening screws and move aside the header tank coolant return pipe.
