Removing the alternator

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Overhauling › Removing the alternator
Engine overhaul: 1.7 16V Boxer (AR33401)Removing the alternator
  1. Completely unscrew the two bolts slackened previously and remove the power steering pump.

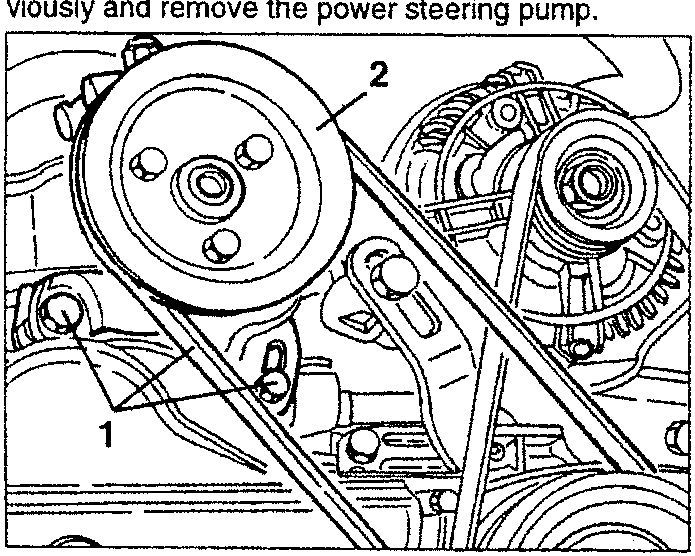

Power steering pump removal diagram showing pulley, belt, and bolts

Removing the alternator

  1. Slacken the two alternator fastening bolts; prise and remove the drive belt.
  2. Completely unscrew the two bolts slackened previously and remove the alternator.

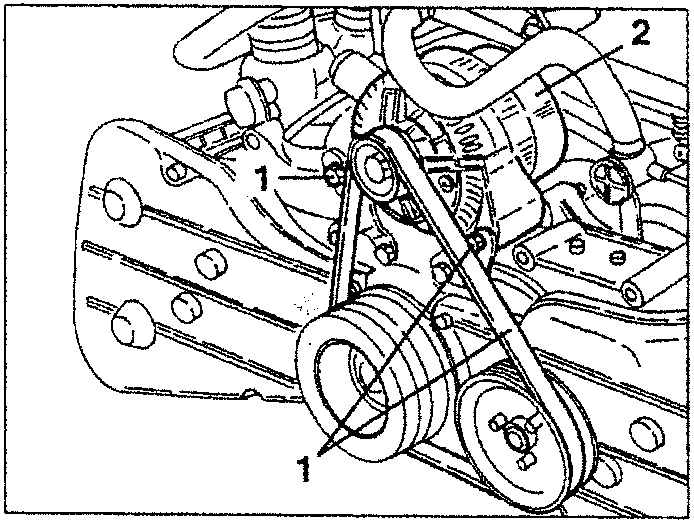

Alternator removal diagram showing alternator, belt, and mounting bolts

Removing the rpm and timing sensor

  1. Slacken the fastening screw and remove the rpm sensor.

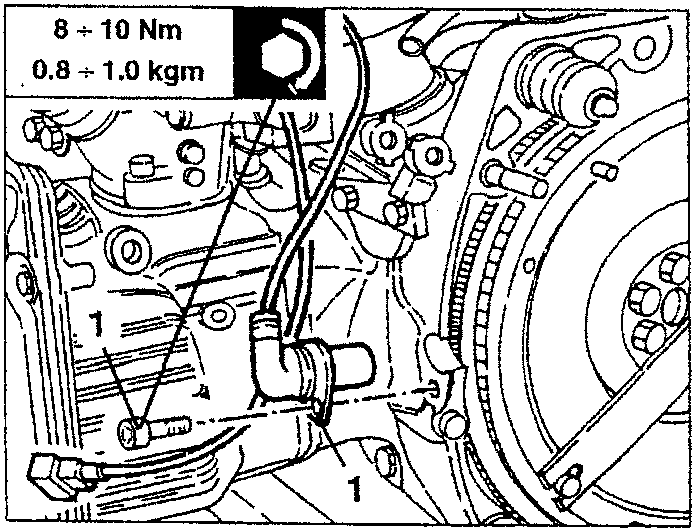

RPM and timing sensor removal diagram with torque specification box

8 ÷ 10 Nm
0.8 ÷ 1.0 kgm

Removing the throttle control shaft

  1. Disconnect the throttle valve control tie-rods.
  2. Slacken the throttle control shaft return spring.

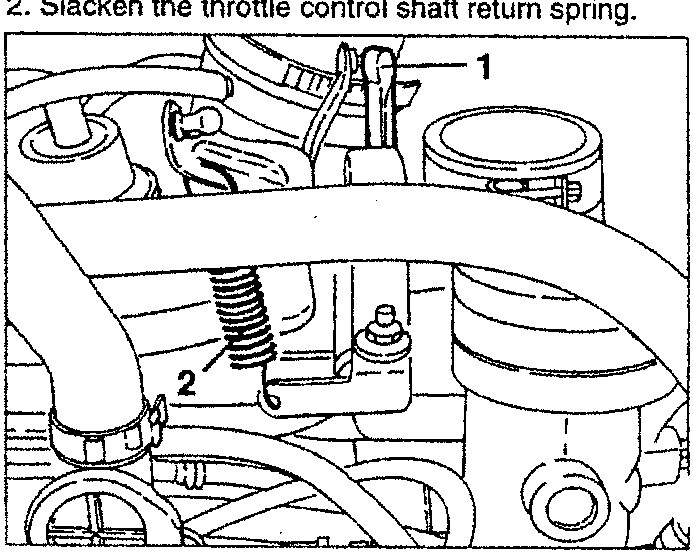

Throttle control shaft removal diagram showing tie rods and return spring
  1. Slacken the fastening nuts and remove the throttle control shaft.
  2. Retrieve the two spacers.

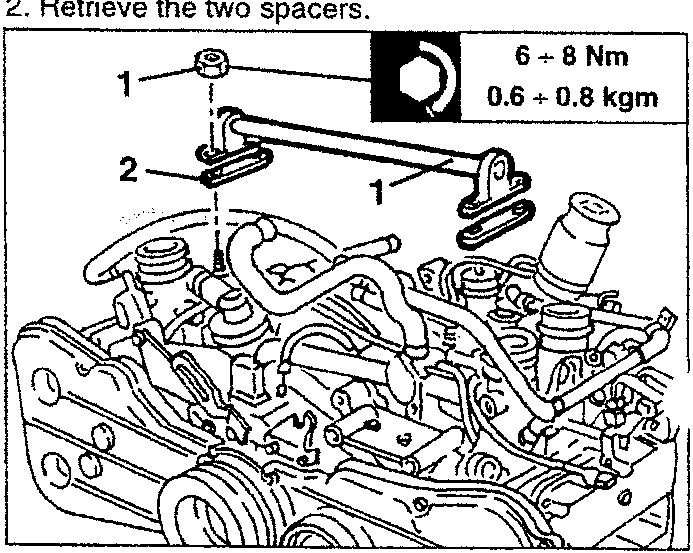

Throttle control shaft removal with spacer retrieval diagram

6 ÷ 8 Nm
0.6 ÷ 0.8 kgm

  1. Slacken the fastening screw and remove the timing sensor.

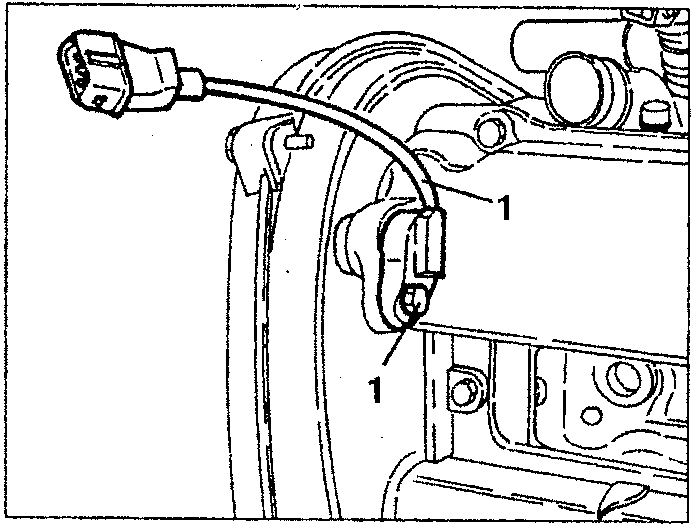

Timing sensor removal diagram showing sensor and fastening screw
